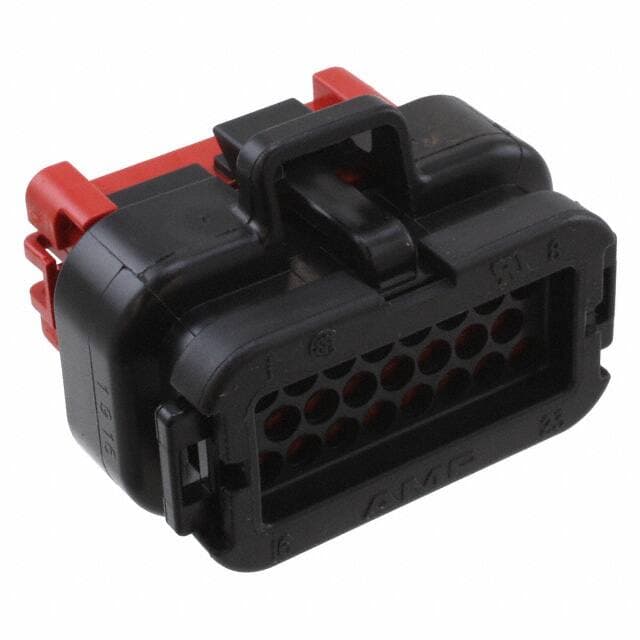

TE Connectivity 770680-1

Manufacturer No:

770680-1

Manufacturer:

TE Connectivity

Package:

Description:

3 Rows Plug Bulk Black 23 Positions Free Hanging (In-Line) Female Socket Crimp AMPSEAL Thermoplastic

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

770680-1 information

TE Connectivity 770680-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 770680-1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 day ago)

Factory Lead Time
10 Weeks

Contact Plating
Gold

Mount
Free Hanging, Through Hole

Mounting Type
Free Hanging (In-Line)

Shell Material
POLYBUTYLENE TEREPHTHALATE

Housing Material
Thermoplastic

Packaging
Bulk

Series
AMPSEAL

Published
2008

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Plug

Number of Positions
23

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Color
Black

Number of Rows
3

Gender
Male

Fastening Type
Latch Lock

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Contact Type
Female Socket

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
3.9878mm

Total Number of Contacts
23

Orientation
Straight

Depth
5.08mm

Current Rating
17A

Empty Shell
NO

Operating Supply Voltage
250V

Contact Resistance
15mOhm

Row Spacing
3.9878 mm

Note
Contacts Not Included

Max Voltage Rating (AC)
250V

Termination Type
SOLDER

Max Current Rating
3A

Wire Gauge (Max)
20 AWG

Wire Gauge (Min)
16 AWG

Max Voltage Rating (DC)
250V

Contact Termination
Crimp

Hybrid Connector
No

Polarized
Yes

Download datasheets and manufacturer documentation for TE Connectivity 770680-1.

Datasheets:

teconnectivitydeutschconnectors-7762862-datasheets-9193.pdf

770680-1 Overview

This product is packaged in a Plug box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the AMPSEAL Series.By Free Hanging, Through Hole, the part is mounted.The operating voltage of this memory is 250V.
