TE Connectivity 826629-3
TE Connectivity 826629-3

TE Connectivity 826629-3

Manufacturer No:

826629-3

Manufacturer:

TE Connectivity

Package:

Description:

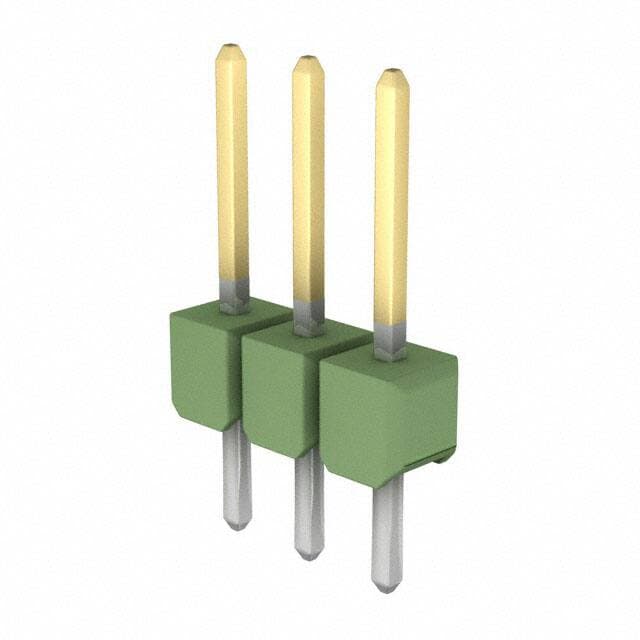

AMPMODU Mod II Series 1-Row Header, Breakaway Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT) 3-Position Board to Board or Cable 0.110 2.79mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

826629-3 information

TE Connectivity 826629-3 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 826629-3.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 23 Weeks
  • Contact Material
  • Brass
  • Contact Plating
  • Gold, Tin
  • Mount
  • Straddle Mount
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT)
  • Housing Material
  • Thermoplastic
  • PCB Mounting Orientation
  • Vertical
  • Operating Temperature
  • -65°C~105°C
  • Packaging
  • Bulk
  • Series
  • AMPMODU Mod II
  • Published
  • 2003
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header, Breakaway
  • Number of Positions
  • 3
  • Number of Rows
  • 1
  • Fastening Type
  • Push-Pull
  • Subcategory
  • Headers and Edge Type Connectors
  • Contact Finish - Mating
  • Gold
  • Current Rating (Amps)
  • 5A
  • Depth
  • 2.5mm
  • Insulation Height
  • 0.110 2.79mm
  • Style
  • Board to Board or Cable
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Green
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL, CSA
  • Reliability
  • COMMERCIAL
  • Contact Length - Post
  • 0.126 3.20mm
  • Shrouding
  • Unshrouded
  • Number Of PCB Rows
  • 1
  • Lead Pitch
  • 2.54mm
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.264 6.70mm
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.098 inch
  • Contact Gender
  • Male
  • Lead Length
  • 3.19786mm
  • Overall Contact Length
  • 0.500 12.70mm
  • Insulation Resistance
  • 5000000000Ohm

Download datasheets and manufacturer documentation for TE Connectivity 826629-3.

Datasheets:

826629-3 Overview


The product is packaged in Header, Breakaway.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMPMODU Mod II Series.Part Straddle Mount is mounted to the part.As a result, the device runs at -65°C~105°C Operating Temperature.
