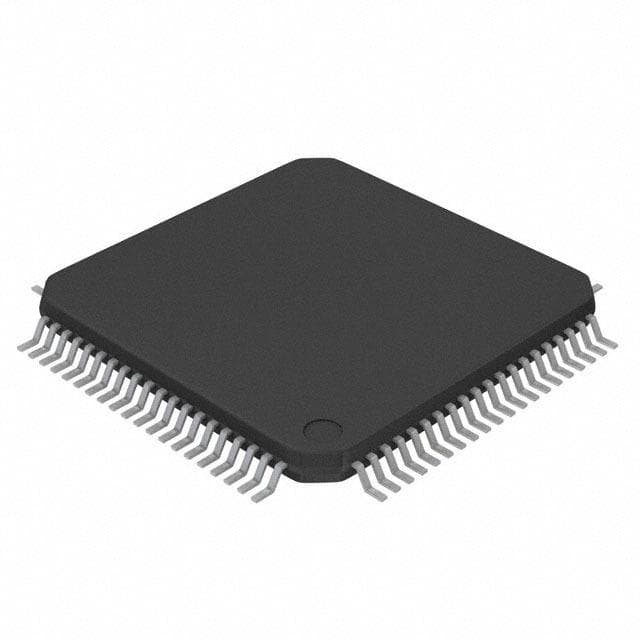

Renesas 82P2281PF
Renesas 82P2281PF

Renesas 82P2281PF

Manufacturer No:

82P2281PF

Manufacturer:

Renesas

Package:

LQFP

Description:

80 Terminations 80 Pin Telecom device 1 Functions

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

82P2281PF information

Renesas 82P2281PF technical specifications, attributes, parameters and parts with similar specifications to Renesas 82P2281PF.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • LQFP
  • Number of Pins
  • 80
  • Published
  • 2009
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 80
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Subcategory
  • Other Telecom ICs
  • Technology
  • BIPOLAR
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 240
  • Number of Functions
  • 1
  • Supply Voltage
  • 1.8V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Pin Count
  • 80
  • Power Supplies
  • 3.3V
  • Temperature Grade
  • INDUSTRIAL
  • Interface
  • SPI
  • Data Rate
  • 2.048 Mbps
  • Telecom IC Type
  • PCM TRANSCEIVER
  • Number of Transceivers
  • 1
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 82P2281PF.

Datasheets:

82P2281PF Overview


Saving board space is achieved with the LQFP package.A Surface Mount-axis mount is used.80 terminations can be found in the configuration.It operates at voltage 1.8V.The telecom interface contains 80 pins.The telecom IC type is PCM TRANSCEIVER.To give designers much flexibility, it uses 1.15A as the supply current.The subcategory of Other Telecom ICs includes telecommunications device .Ensure normal operation by setting the temperature to -40°C minimum.It is necessary to set the temperature at the maximum value of 85°C for the telecom IC to function normally.As part of the design process, 1 functions are configured.A 80 telecom product's pins are designed for the configuration of that telecom product.With 1 transceivers, it is integrated.

82P2281PF Features


Available in the LQFP package
PCM TRANSCEIVER as telecom IC type
Operating supply current of 1.15A
1 transceivers


82P2281PF Applications


There are a lot of Integrated Device Technology (IDT)
82P2281PF Telecom applications.


  • SONET/SDH terminal
  • Add/Drop multiplexers (ADMs)
  • T1/E1/J1 add/drop multiplexers (MUX)
  • Channel Service Units (CSUs): T1/E1/J1
  • Fractional T1/E1/J1
  • BITS Timing
  • Digital Access Cross-connect System (DACs)
  • Digital Cross-connect Systems (DCS)
  • Frame Relay Switches and Access Devices (FRADS)
  • ISDN Primary Rate Interfaces (PRA)

User Guide
