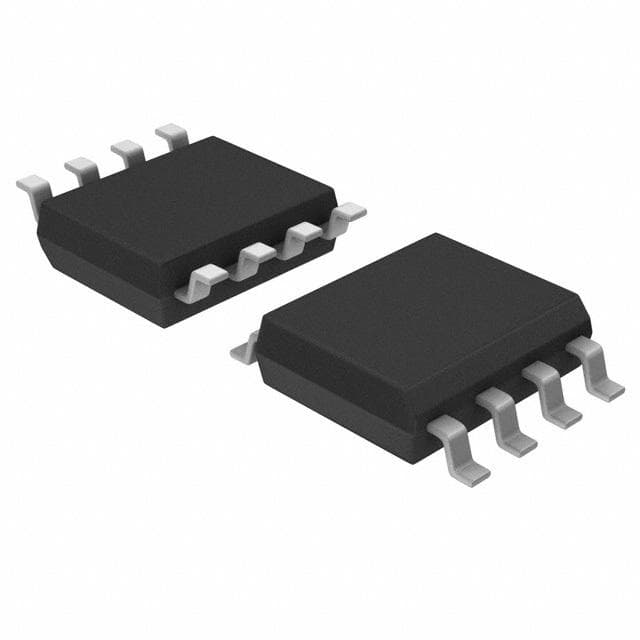

Renesas 8304AMLNT

Manufacturer No:

8304AMLNT

Manufacturer:

Renesas

Package:

SOIC

Description:

1 Circuit 200MHz 3.3V Clock Buffer DUAL 8 Pins SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

8304AMLNT information

Renesas 8304AMLNT technical specifications, attributes, parameters and parts with similar specifications to Renesas 8304AMLNT.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Published
2004

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
8

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.465V

Power Supplies
2.5/3.33.3V

Number of Circuits
1

Frequency (Max)
200MHz

Input
LVTTL

Logic IC Type
LOW SKEW CLOCK DRIVER

Prop. Delay@Nom-Sup
3.7 ns

Propagation Delay (tpd)
3.4 ns

Same Edge Skew-Max (tskwd)
0.045 ns

Number of True Outputs
4

Length
4.9mm

Width
3.9mm

Thickness
1.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 8304AMLNT.

Datasheets:

integrateddevicetechnology-8304amlnt-datasheets-6697.pdf

8304AMLNT Overview

SOIC case is available for the cut smart buffer. Normal operation has a maximum value of 200MHz. A total of 8 terminations have been found in it. The supply voltage of 3.3V is capable of providing high efficiency. There is a place for it in the way of Surface Mount. On this board, there is a pin count of 8. In order for the timeing clock to operate, it is connected to the 8 pins. There is a circuit clock contained within Clock Drivers that is responsible for this function. It is designed to operate at a minimum temperature of 0°C in order to maintain reliability. In order to ensure stable operation, the maximum operating temperature must be set to 70°C. This value is set to 3.465V for the maximum available supply voltage (Vsup). An IC with a value of LOW SKEW CLOCK DRIVER is used in order to achieve this. There is a 2.5/3.33.3V volt supply that powers the timeing clock. It is possible to have 4 true outputs.

8304AMLNT Features

8 terminations
Clock Drivers subcategory
logic IC type of LOW SKEW CLOCK DRIVER

8304AMLNT Applications

There are a lot of Integrated Device Technology (IDT)
8304AMLNT Clock Buffers & Drivers applications.

Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
Computing
