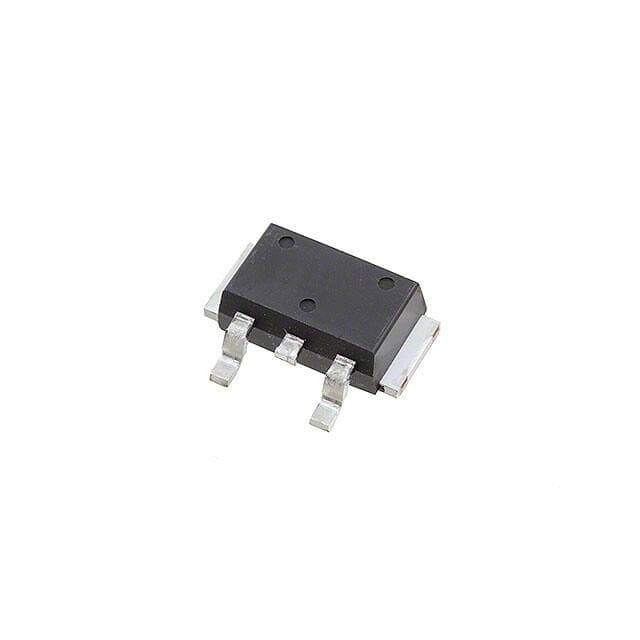

VISHAY 83CNQ100ASL
VISHAY 83CNQ100ASL

VISHAY 83CNQ100ASL

Manufacturer No:

83CNQ100ASL

Manufacturer:

VISHAY

Package:

D-61-8-SL

Description:

Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~175°C 40A 100V-DC D-61-8-SL Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

83CNQ100ASL information

VISHAY 83CNQ100ASL technical specifications, attributes, parameters and parts with similar specifications to VISHAY 83CNQ100ASL.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • D-61-8-SL
  • Number of Pins
  • 3
  • Supplier Device Package
  • D-61-8-SL
  • Packaging
  • Bulk
  • Published
  • 2001
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -55°C
  • Capacitance
  • 1.4nF
  • Base Part Number
  • 83CNQ100
  • Element Configuration
  • Common Cathode
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 1.5mA @ 100V
  • Voltage - Forward (Vf) (Max) @ If
  • 1V @ 80A
  • Max Reverse Leakage Current
  • 1.5mA
  • Operating Temperature - Junction
  • -55°C~175°C
  • Max Surge Current
  • 7kA
  • Voltage - DC Reverse (Vr) (Max)
  • 100V
  • Breakdown Voltage
  • 100V
  • Current - Average Rectified (Io)
  • 40A
  • Max Reverse Voltage (DC)
  • 100V
  • Average Rectified Current
  • 40A
  • Peak Reverse Current
  • 1.5mA
  • Max Repetitive Reverse Voltage (Vrrm)
  • 100V
  • Peak Non-Repetitive Surge Current
  • 7kA
  • Diode Configuration
  • 1 Pair Common Cathode
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY 83CNQ100ASL.

Datasheets:

RohsStatement:

83CNQ100ASL Overview


In the case of 1V forward voltage, the device will operate.Array is important to monArrayor the surge current and make sure that Array does not exceed 7kA.An approximate capacitance of 1.4nF farads is present in this device.Powered by reverse voltage, this device has a peak voltage of 1.5mA.This semiconductor device's maximal reverse leakage current is 1.5mA kA, which is its reverse leakage current when reverse biased.

83CNQ100ASL Features


1V forward voltage
1.4nF farads
a peak voltage of 1.5mA
a reverse voltage peak of 1.5mA


83CNQ100ASL Applications


There are a lot of Vishay Semiconductor Diodes Division
83CNQ100ASL applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
