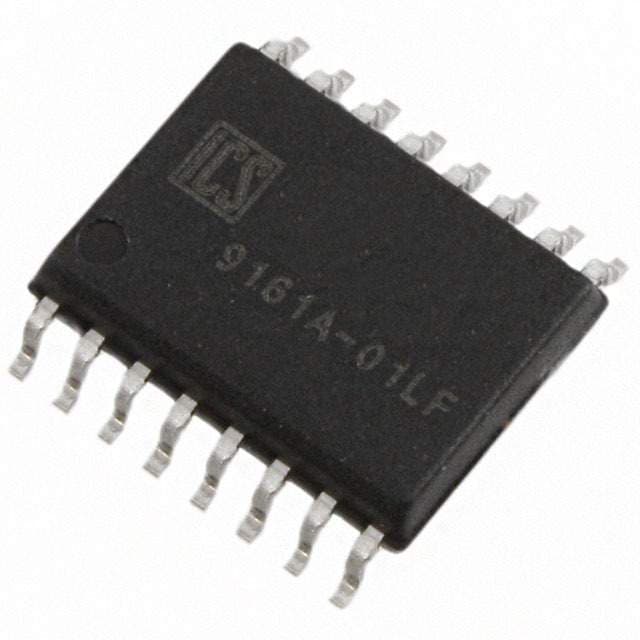

Renesas 9161A-01CW16LF

Manufacturer No:

9161A-01CW16LF

Manufacturer:

Renesas

Package:

SOIC

Description:

5V V 7.6mm mm Application Specific Timer 10.4mm mm 10.4mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

9161A-01CW16LF information

Renesas 9161A-01CW16LF technical specifications, attributes, parameters and parts with similar specifications to Renesas 9161A-01CW16LF.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
16

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Number of Elements
2

Power Supplies
5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Operating Supply Current
65mA

Nominal Supply Current
65mA

Frequency (Max)
120MHz

Input
Clock

Primary Clock/Crystal Frequency-Nom
60MHz

Length
10.4mm

Width
7.6mm

Thickness
2.34mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 9161A-01CW16LF.

Datasheets:

integrateddevicetechnology-9161a01cw16lf-datasheets-9316.pdf

9161A-01CW16LF Overview

SOIC is included in the case. In it, there are 16 terminations. Clock program provides 5V volts. In order to run 260, the peak reflow temperature of this part is taken into account. The device contains 1. In normaloperation, the maximum frequency is 120MHz. Of the part, there are 2005 publications. Surface Mount is recommended for mounting. With 16 pins, the device is designed. There are 16 pins on it. Minimum working temperature for this device must not be less than 0°C. Under 70°C degrees Celsius, the operating temperature should be maintained. You should maintain a voltage of 5V for the supply. Voltage 5.25V is used for this part. Circuits application is necessary for the device to have a supply voltage greater than 4.75V. Circuits application is possible to operate this part at 65mA supply current. The total number of elements is 2.

9161A-01CW16LF Features

Peak Reflow Temperature (Cel): 260
Include 1 Circuits
with 16 Pins
operate supply voltage at the range of 5V

9161A-01CW16LF Applications

There are a lot of Integrated Device Technology (IDT)
9161A-01CW16LF application specific timer applications.

Routers
Ethernet switch/router
PCI Express 2.0/3.0
Broadcast video/audio timing
Processor and FPGA clocking
Any-frequency clock conversion
MSAN/DSLAM/PON
Fibre Channel, SAN
Telecom line cards
1 GbE and 10 GbE
