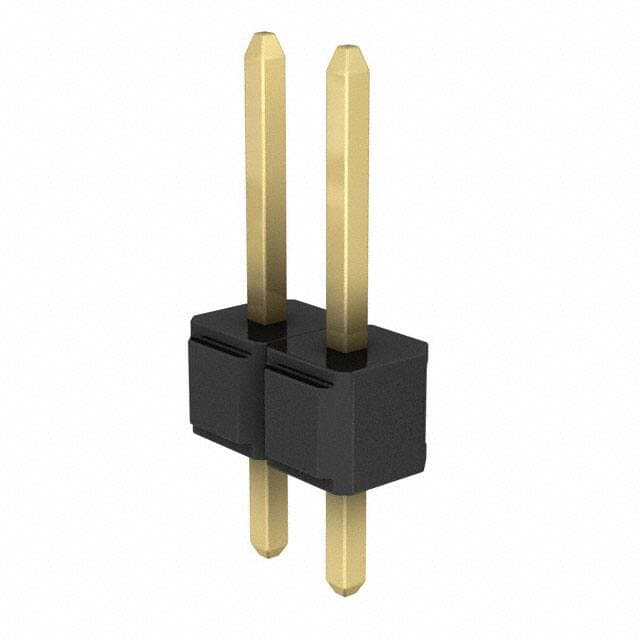

3M 929647-01-02-EU
3M 929647-01-02-EU

3M 929647-01-02-EU

Manufacturer No:

929647-01-02-EU

Manufacturer:

3M

Package:

Description:

929 Series 1-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Polycyclohexylenedimethylene Terephthalate (PCT) 2-Position Board to Board 0.100 2.54mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

929647-01-02-EU information

3M 929647-01-02-EU technical specifications, attributes, parameters and parts with similar specifications to 3M 929647-01-02-EU.

  • Type
  • Parameter
  • Factory Lead Time
  • 3 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polycyclohexylenedimethylene Terephthalate (PCT)
  • Housing Material
  • Polycyclohexylenedimethylene
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • 929
  • Published
  • 2008
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header, Breakaway
  • Number of Positions
  • 2
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Black
  • Number of Rows
  • 1
  • Gender
  • Male
  • Voltage - Rated
  • 1.5kV
  • Fastening Type
  • Push-Pull
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 2.5A
  • Pitch
  • 2.54mm
  • Orientation
  • Straight
  • Depth
  • 2.92mm
  • Insulation Height
  • 0.100 2.54mm
  • Style
  • Board to Board
  • Number of Positions Loaded
  • All
  • Current Rating
  • 2.5A
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Contact Length - Post
  • 0.110 2.79mm
  • Shrouding
  • Unshrouded
  • Contact Finish - Post
  • Gold
  • Contact Length - Mating
  • 0.235 5.97mm
  • Contact Gender
  • Male
  • Housing Color
  • Black
  • Overall Contact Length
  • 0.445 11.30mm
  • Max Current Rating
  • 2.5A
  • Length
  • 5.1mm
  • Contact Finish Thickness - Mating
  • 10.0?in 0.25?m
  • Contact Finish Thickness - Post
  • 10.0?in 0.25?m
  • Material Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for 3M 929647-01-02-EU.

Datasheets:

ConflictMineralStatement:

929647-01-02-EU Overview


Currently, it is packaged in Header, Breakaway.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the 929 Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.

929647-01-02-EU Features


929 series


929647-01-02-EU Applications


There are a lot of 3M
929647-01-02-EU Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
