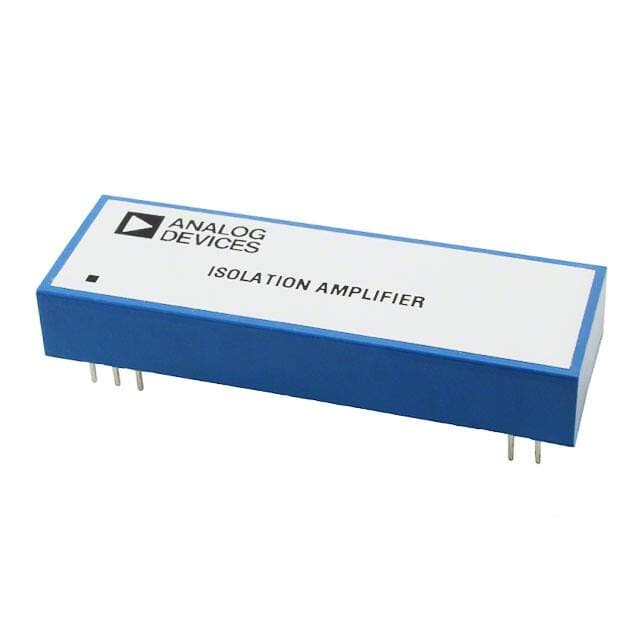

ADI AD204JN

Manufacturer No:

AD204JN

Manufacturer:

ADI

Package:

38-DIP (0.600, 15.24mm), 11 Leads

Description:

2mA per Channel 30pA 130 dB Instrumentational OP Amps AD204 10 Pins 38-DIP (0.600, 15.24mm), 11 Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD204JN information

ADI AD204JN technical specifications, attributes, parameters and parts with similar specifications to ADI AD204JN.

Type
Parameter

Lifecycle Status
LAST TIME BUY (Last Updated: 3 weeks ago)

Contact Plating
Lead, Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
38-DIP (0.600, 15.24mm), 11 Leads

Number of Pins
10

Operating Temperature
0°C~70°C

Packaging
Tube

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Resistance
2GOhm

Technology
HYBRID

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
15V

Base Part Number
AD204

Pin Count
10

Number of Elements
1

Number of Circuits
4

Amplifier Type
Isolation

Common Mode Rejection Ratio
130 dB

Output Current per Channel
2mA

Input Offset Voltage (Vos)
15mV

Bandwidth
5 kHz

Voltage Gain
40dB

Current - Output / Channel
2mA

-3db Bandwidth
5MHz

Isolation Voltage
1kV

Input Voltage Noise Density
50nV/sqrt Hz

Height
8.9mm

Length
53.3mm

Width
17.8mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI AD204JN.

AD204JN Overview

There is a 38-DIP (0.600, 15.24mm), 11 Leads case in which the instrumentation amplifier is packaged. Buffer amps of this type are called Isolation-types. A Tube case is used to deliver the buffer op amp. The number of terminations is approaching the 10 mark. The total number of pins on linear amplifier is 10. The linear amplifier should be run at 15V at all times, so please keep that in mind when using it. 10 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 15mV. For this electronic part, it is recommended that you mount it with type Through Hole. It is important to note that this linear amplifier works well at a temperature of 0°C~70°C when it comes to operating temperature40dB should be the voltage gain. A linear amplifier like this has 4 circuits on it. There are 1 elements in total in this linear amplifier. 2GOhm is the range in which the op amp resistance should lie.
