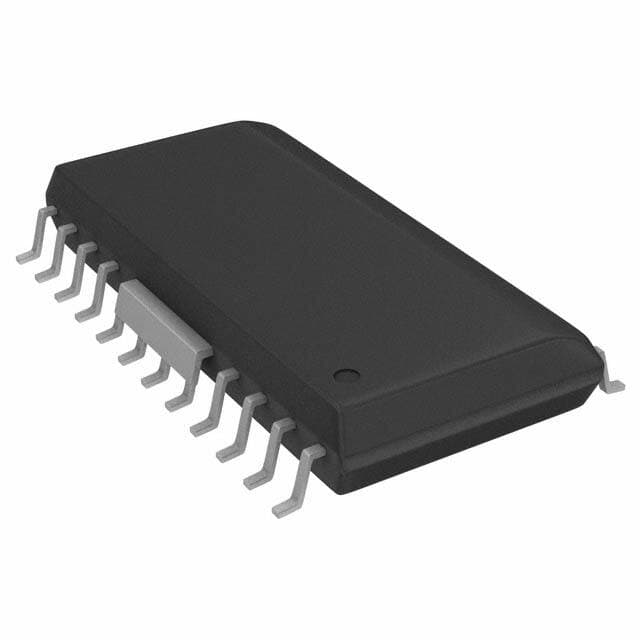

ADI AD815ARBZ-24-REEL

Manufacturer No:

AD815ARBZ-24-REEL

Manufacturer:

ADI

Package:

24-SOIC (0.295, 7.50mm Width), 18 Leads, Fused Leads

Description:

2 Channels 500mA per Channel 10?A 65 dB Instrumentational OP Amps 10V~36V ±5V~18V AD815 24 Pins 24-SOIC (0.295, 7.50mm Width), 18 Leads, Fused Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD815ARBZ-24-REEL information

ADI AD815ARBZ-24-REEL technical specifications, attributes, parameters and parts with similar specifications to ADI AD815ARBZ-24-REEL.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
24-SOIC (0.295, 7.50mm Width), 18 Leads, Fused Leads

Surface Mount
YES

Number of Pins
24

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
5 (48 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Power Dissipation
2.4W

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
AD815

Pin Count
24

Supply Voltage-Max (Vsup)
18V

Number of Channels
2

Operating Supply Current
40mA

Nominal Supply Current
40mA

Quiescent Current
40mA

Slew Rate
900V/?s

Amplifier Type
Differential

Common Mode Rejection Ratio
65 dB

Current - Input Bias
10?A

Voltage - Supply, Single/Dual (±)
10V~36V ±5V~18V

Output Characteristics
TOTEM-POLE

Output Current per Channel
500mA

Input Offset Voltage (Vos)
10mV

Differential Output
YES

Power Supply Rejection Ratio (PSRR)
66dB

Output Polarity
COMPLEMENTARY

Settling Time
70 ns

-3db Bandwidth
120MHz

Interface IC Type
LINE DRIVER

Driver Number of Bits
2

Input Capacitance
1.4pF

Interface Standard
GENERAL PURPOSE

Negative Supply Voltage-Nom
-15V

Length
15.4mm

Download datasheets and manufacturer documentation for ADI AD815ARBZ-24-REEL.

Datasheets:

analogdevicesinc-ad815arbz24reel-datasheets-2239.pdf

analogdevices-ad815arbz24reel-datasheets-0196.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD815ARBZ-24-REEL Overview

The linear amplifier is packaged in a 24-SOIC (0.295, 7.50mm Width), 18 Leads, Fused Leads case. This is a Differential type op amp. Linear amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 24. Buffer amplifier has a total of 24 pins. Please take in mind that this instrumentation amplifier should be run at 15V. The buffer op amp includes 24 pins. Regarding input offset voltage, op amp rates 10mV. Surface Mount is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -40°C~85°C. This op amp can operate from a supply current at 40mA. The op amp ic has 2 channels on it. Buffer amplifier has a quiescent current of 40mA. LINE DRIVER is the interface IC type of the electronic part.

AD815ARBZ-24-REEL Features

24 Pins
supply voltage of 15V

AD815ARBZ-24-REEL Applications

There are a lot of Analog Devices Inc.
AD815ARBZ-24-REEL Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
