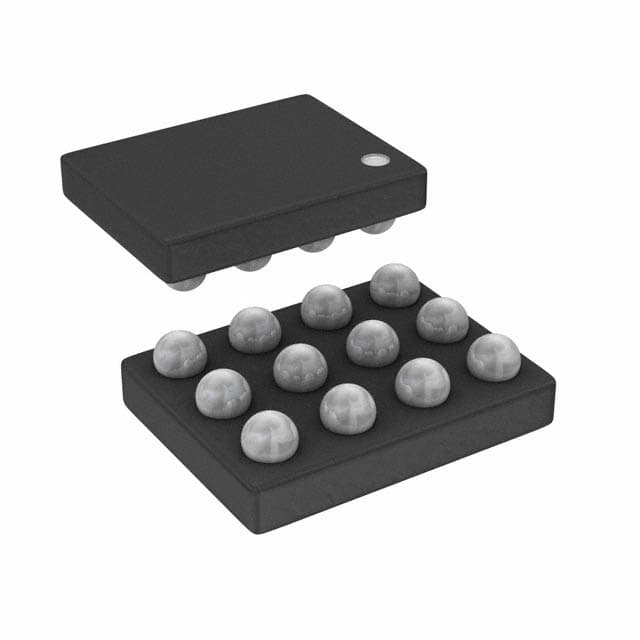

ADI ADG3304BCBZ-REEL7
ADI ADG3304BCBZ-REEL7

ADI ADG3304BCBZ-REEL7

Manufacturer No:

ADG3304BCBZ-REEL7

Manufacturer:

ADI

Package:

12-UFBGA, WLCSP

Description:

Surface Mount 12 pins Tape & Reel (TR) Voltage Translators & Level Shifters 1 Voltage Level 12-UFBGA, WLCSP Active 8 Weeks Weeks 1 (Unlimited)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADG3304BCBZ-REEL7 information

ADI ADG3304BCBZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADG3304BCBZ-REEL7.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 2 weeks ago)
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 12-UFBGA, WLCSP
  • Number of Pins
  • 12
  • Supplier Device Package
  • 12-WLCSP (2.01x1.61)
  • Weight
  • 65.99769mg
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Feature
  • Auto-Direction Sensing
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Base Part Number
  • ADG3304
  • Output Type
  • Tri-State, Non-Inverted
  • Number of Circuits
  • 1
  • Max Supply Voltage
  • 5.5V
  • Min Supply Voltage
  • 1.15V
  • Operating Supply Current
  • 1?A
  • Propagation Delay
  • 5 ns
  • Quiescent Current
  • 5?A
  • Turn On Delay Time
  • 35 ns
  • Logic Function
  • Translator
  • Number of Inputs
  • 4
  • High Level Output Current
  • -20?A
  • Channel Type
  • Bidirectional
  • Low Level Output Current
  • 20?A
  • Translator Type
  • Voltage Level
  • Voltage - VCCA
  • 1.15V~5.5V
  • Voltage - VCCB
  • 1.65V~5.5V
  • Channels per Circuit
  • 4
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for ADI ADG3304BCBZ-REEL7.

Datasheets:

PCN Packaging:

ConflictMineralStatement:

ADG3304BCBZ-REEL7 Overview


Embedded in the 12-UFBGA, WLCSP package, it is available for you to use.Tape & Reel (TR) is the way in which it is packaged.Tri-State, Non-Inverted is used for the output it is configured with.There is a translator type of Voltage Level for this electrical device.Surface Mount is the method used for mounting this electronic part.Level translators has the Channel type Bidirectional.The temperature used for operation is -40°C~85°C TA.Flexible 1 circuits enable it to achieve high performance.Parts related to a base part number ADG3304 are designated by the same number.In addition, it is designed with a pin number of 12.There is a maximum voltage of 5.5V supported.In order for the machine to operate, the supply voltage must be 1.15V.VCCA is configured with a supply rail that starts at 1.15V~5.5V.VCCB is configured with a supply rail that starts at 1.65V~5.5V.Level translators consumes 5?A of quiescent current wLevel translatorshout being affected by outside factors.Whenever the operation is performed, Auto-Direction Sensing will be guaranteed.In order for the system to operate properly, the operating temperature should be higher than -40°C.Level translators is recommended to work at a temperature lower than 85°C.

ADG3304BCBZ-REEL7 Features


12-UFBGA, WLCSP package
1 circuits
12 pins


ADG3304BCBZ-REEL7 Applications


There are a lot of Analog Devices Inc.
ADG3304BCBZ-REEL7 voltage translators & level shifters applications.


  • SMBus
  • SDIO
  • UART
  • I2C
  • Automotive
  • Personal computing
  • Automotive infotainment
  • Advanced Driver Assistance System (ADAS)
  • Telematics
  • Handset
