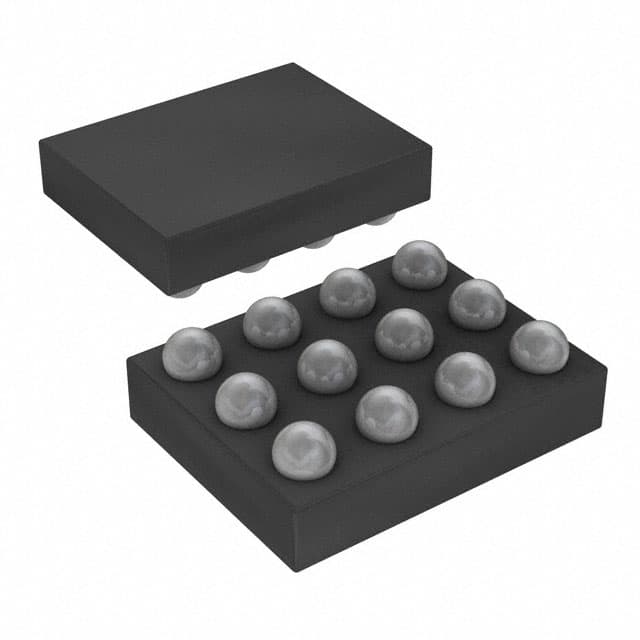

ADI ADP1660ACBZ-R7
Manufacturer No:
ADP1660ACBZ-R7
Manufacturer:
Package:
12-WFBGA, WLCSP
Description:
3.6V 0.5mm Copper, Silver, Tin PMIC ADP1660 12 Pin 1.5MHz 3MHz 3.6V 12-WFBGA, WLCSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADP1660ACBZ-R7 information
ADI ADP1660ACBZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP1660ACBZ-R7.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 weeks ago)
- Contact Plating
- Copper, Silver, Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 12-WFBGA, WLCSP
- Number of Pins
- 12
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Cut Tape (CT)
- Pbfree Code
- no
- Part Status
- Discontinued
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 12
- ECCN Code
- EAR99
- Type
- DC DC Regulator
- Subcategory
- Display Drivers
- Technology
- DMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Supply Voltage
- 3.6V
- Terminal Pitch
- 0.5mm
- Frequency
- 1.5MHz 3MHz
- Base Part Number
- ADP1660
- Pin Count
- 12
- Number of Outputs
- 2
- Efficiency
- 90 %
- Max Output Current
- 750mA
- Operating Supply Voltage
- 3.3V
- Power Supplies
- 3.6V
- Max Supply Voltage
- 5V
- Min Supply Voltage
- 2.7V
- Output Current
- 750mA
- Voltage - Output
- 4.575V~5.425V
- Topology
- Step-Up (Boost)
- Min Input Voltage
- 2.7V
- Max Input Voltage
- 5V
- Output Current per Channel
- 750mA
- Current - Output / Channel
- 750mA Flash
- Internal Switch(s)
- Yes
- Dimming
- I2C
- Switching Frequency
- 3MHz
- Width
- 1.66mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ADI ADP1660ACBZ-R7.
ConflictMineralStatement:
ADP1660ACBZ-R7 Overview
The 12-WFBGA, WLCSP package is used for saving board space. LED drivers with this design have 2 outputs.For mounting, it uses the Surface Mount method.It emerges as a DC DC Regulator, which is efficient and reliable.The led light driver is capable of operating at the operating temperature of -40°C~85°C TA.1.5MHz 3MHz is the frequency in which it operates.There are 12 terminations that are designed to operate with it.The configuration of the board is built around 12 pins.It's mounted on the way to Surface Mount.It is under the base part number ADP1660 that you can find this LED driver.5V is a maximum acceptable voltage for the supply.A voltage of 4.575V~5.425V is produced by it.There are 12 pins on it.In addition, its characteristics are classified into Display Drivers.A minimal input voltage of 2.7V is required for it to operate.A minimum supply voltage of 2.7V is required to meet the highest efficiency standards.5V is the maximum value of the supply current.It is possible to supply the load with 750mA current.It is necessary to have 3.3V voltages inside systems to power them.The electronic component can function fully when the switching frequency is maintained at 3MHz.At maximum output current 750mA, it will deliver all the benefits of a LED driver.
