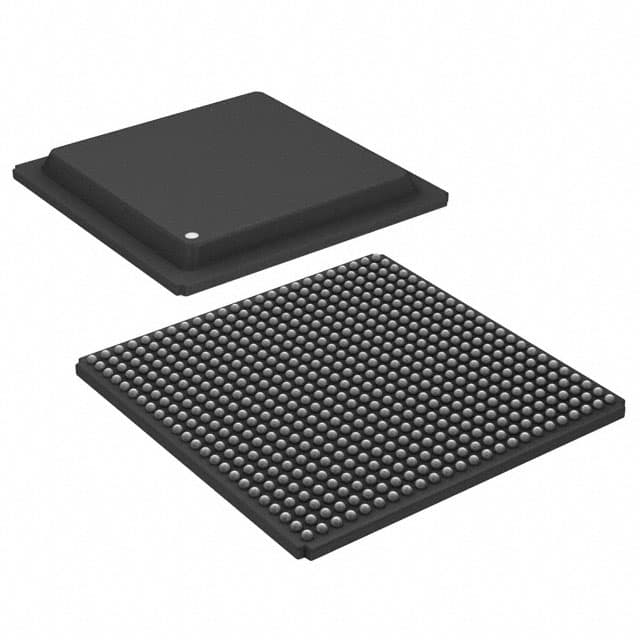

ADI ADSP-TS203SABPZ050

Manufacturer No:

ADSP-TS203SABPZ050

Manufacturer:

ADI

Package:

575-BBGA

Description:

1mm 4MB CPLD TigerSHARC® Series ADSP-TS203 576 Pin 500MHz 1.05V 575-BBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADSP-TS203SABPZ050 information

ADI ADSP-TS203SABPZ050 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-TS203SABPZ050.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
575-BBGA

Number of Pins
576

Operating Temperature
-40°C~85°C TC

Packaging
Tray

Series
TigerSHARC®

JESD-609 Code
e1

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
576

Type
Fixed/Floating Point

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.05V

Terminal Pitch
1mm

Frequency
500MHz

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
ADSP-TS203

Operating Supply Voltage
1.05V

Interface
Host Interface, Link Port, Multi-Processor

Max Supply Voltage
2.63V

Min Supply Voltage
1V

Memory Size
4MB

RAM Size
512kB

Bit Size
32

Data Bus Width
32b

Number of Timers/Counters
2

Address Bus Width
32

Boundary Scan
YES

Low Power Mode
NO

Voltage - I/O
2.50V

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
External

On Chip Data RAM
512kB

Height Seated (Max)
3.1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI ADSP-TS203SABPZ050.

Datasheets:

analogdevicesinc-adspts203sabpz050-datasheets-2077.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADSP-TS203SABPZ050 Overview

An electronic component available in package 575-BBGA.Tray packaging is provided for it.Its Fixed/Floating Point status makes it ideal for a wide range of applications.It is mounted in the direction of Surface Mount as shown in the image below.If it is operating at the temperature of -40°C~85°C TC, then it will be operating normally.This refers to the analog voltage range that can be input or output from 2.50V.There are several digital signal processors in the TigerSHARC® series, including this one.In terms of its uses, it has 576 terminations.1.05V provides the supply voltage for it.The 576 component has pins.There are 576 pins in its configuration.The base part number ADSP-TS203 can be used to identify many associated parts.To operate at 500MHz frequency, the device has a specific design.Mounting is accomplished using Surface Mount.According to its specific characteristics, this device is classified in the subcategory Digital Signal Processors.In this device, the minimum voltage is 1V.It can be supplied with a maximum voltage of 2.63V.A supply voltage of 1.05V is required for its operation.Its memory can be used to store 4MB data.Timers and counters that measure time and count external events are also called 2 timers and counters.

ADSP-TS203SABPZ050 Features

Supplied in the 575-BBGA package
Operating supply voltage of 1.05V
2 timers/counters

ADSP-TS203SABPZ050 Applications

There are a lot of Analog Devices Inc.
ADSP-TS203SABPZ050 DSP applications.

Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
Control systems
Biomedical engineering
