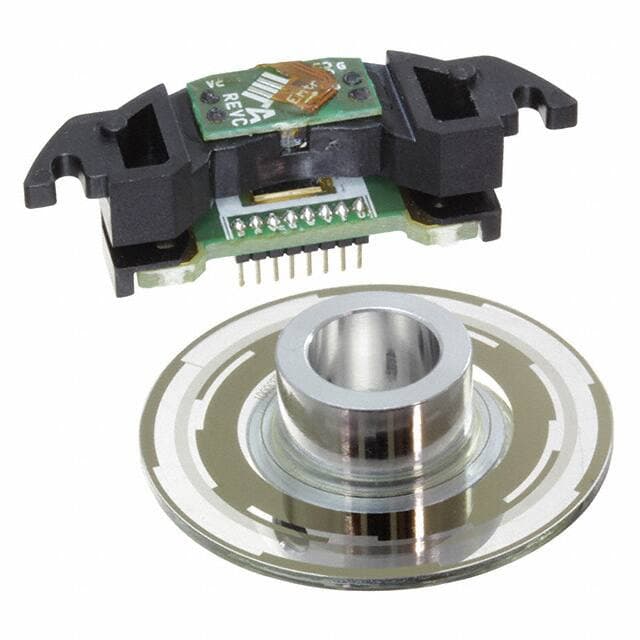

BROADCOM AEDB-9340-B13C

Manufacturer No:

AEDB-9340-B13C

Manufacturer:

BROADCOM

Package:

Module

Description:

AEDB-9340 Optical Terminal Pins Chassis Mount, Motors 8mm Open Center Pulses per Revolution:1000 PC Pins ROTARY POSITION ENCODER

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AEDB-9340-B13C information

BROADCOM AEDB-9340-B13C technical specifications, attributes, parameters and parts with similar specifications to BROADCOM AEDB-9340-B13C.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount, Motors

Package / Case
Module

Number of Pins
8

Packaging
Bulk

Series
AEDB-9340

Published
2016

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
PC Pins

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-10°C

Number of Functions
1

Termination Style
Terminal Pins

Actuator Type
8mm Open Center

Output Type
Quadrature with Index (Incremental)

Operating Supply Voltage
5V

Configuration
SINGLE, 3 CHANNELS

Number of Channels
6

Optoelectronic Device Type
ROTARY POSITION ENCODER

Encoder Type
Optical

Detent
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for BROADCOM AEDB-9340-B13C.

AEDB-9340-B13C Overview

In order for the encoder to work properly, the minimum operating temperature must not be lower than -10°C. However, this electronic part can operate at a maximum temperature of 85°C. There are 8 pins on the encoders. Encoders are packaged as Bulk. To protect the encoders from damage, we put them in Module packages.

AEDB-9340-B13C Features

Series: AEDB-9340
Package / Case: Module
Termination: PC Pins
8 pins

AEDB-9340-B13C Applications

There are a lot of Broadcom Limited
AEDB-9340-B13C Encoders applications.

Consumer electric appliances
Musical instrumentation
Communications equipment
Printers
Plotters
Tape drives
Factory automation equipment
Global Positioning/Driver Information Systems
Medical Equipment
Automatic health monitoring systems
