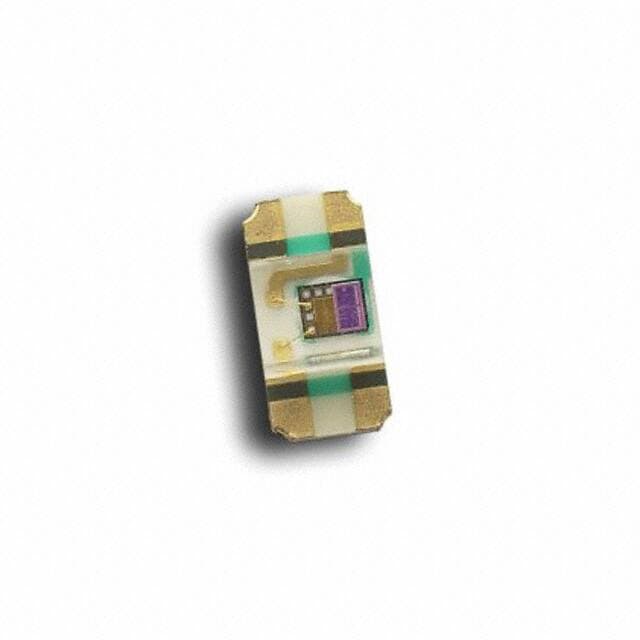

BROADCOM APDS-9006-020

Manufacturer No:

APDS-9006-020

Manufacturer:

BROADCOM

Package:

LEAD FREE, CHIPLED PACKAGE-4

Description:

Description: Analog Circuit, 1 Func, LEAD FREE, CHIPLED PACKAGE-4

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

APDS-9006-020 information

BROADCOM APDS-9006-020 technical specifications, attributes, parameters and parts with similar specifications to BROADCOM APDS-9006-020.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
BROADCOM INC

Package Description
LEAD FREE, CHIPLED PACKAGE-4

Reach Compliance Code
compliant

HTS Code
8542.39.00.01

Factory Lead Time
16 Weeks

Samacsys Manufacturer
Avago Technologies

Analog IC - Other Type
ANALOG CIRCUIT

JESD-30 Code
R-XSMA-P4

Moisture Sensitivity Level
3

Number of Functions
1

Number of Terminals
4

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
UNSPECIFIED

Package Code
SMA

Package Shape
RECTANGULAR

Package Style
MICROELECTRONIC ASSEMBLY

Peak Reflow Temperature (Cel)
255

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
5.5 V

Supply Voltage-Min (Vsup)
2.4 V

Supply Voltage-Nom (Vsup)
3 V

Temperature Grade
INDUSTRIAL

Terminal Form
PIN/PEG

Terminal Position
SINGLE

Download datasheets and manufacturer documentation for BROADCOM APDS-9006-020.

Datasheets:

broadcom-apds9006020-datasheets-1754.pdf

broadcom-apds9006020-datasheets-1755.pdf

APDS-9006-020 Description

The APDS-9006 is a low-cost analog-output ambient light photo sensor with features for temperature and voltage adjustment. It comes in a reverse mount, 4-pin tiny chipLED lead-free surface mount packaging. It is made up of a spectrally appropriate photo sensor that, as shown in figure 2, offers great responsiveness that is comparable to the response of the human eyes.

The APDS-9006 is perfect for applications where ambient light measurement is used to control display backlighting, such as in Note-book, mobile phone, and PDA applications that draw a lot of current from display backlighting. These photo sensor products will benefit from being incorporated into their designs by significantly reducing power consumption. ESS, Automatic Residential and Commercial Lighting Management, and other applications are also available.

APDS-9006-020 Features

Good output linearity across wide illumination range

Low sensitivity variation across various light sources

Stable performance over temperature and voltage

Operating temperature, -40°C to 85°C

Vcc supply 2.4 to 5.5V

Lead-free package

Excellent responsivity which peaks in the human luminosity curve, close responsivity to the human eye

ChipLED surface-mount package ? Reverse Mounting

APDS-9006-020 Applications

Detection of ambient light to control display backlighting

Mobile devices ? Mobile phones, PDAs

Computing devices ? Notebooks, Webpads

Consumer devices ? TVs, Video Cameras, Digital Still

Cameras

Automatic Residential and Commercial Lighting Management

Electronic Signs and Signals

User Guide
