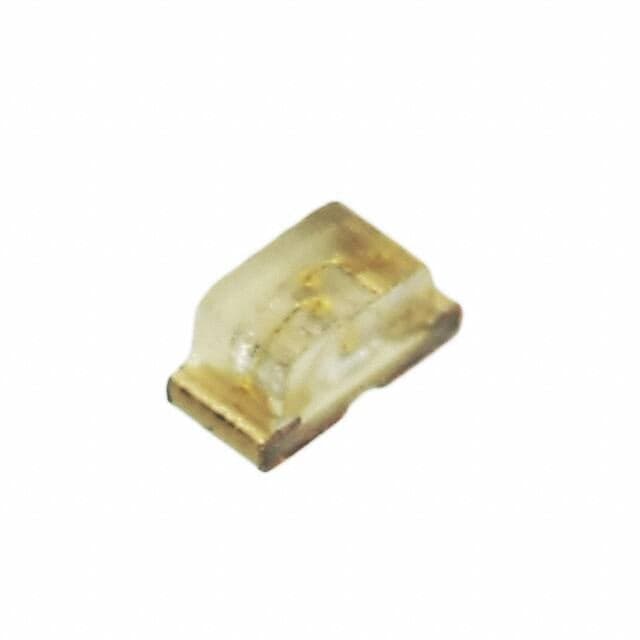

Kingbright APHHS1005CGCK

Manufacturer No:

APHHS1005CGCK

Manufacturer:

Kingbright

Package:

1 X 0.50 MM, 0.50 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

Description:

Single Color LED, Green, Water Clear, 0.8mm, 1 X 0.50 MM, 0.50 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

APHHS1005CGCK information

Kingbright APHHS1005CGCK technical specifications, attributes, parameters and parts with similar specifications to Kingbright APHHS1005CGCK.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
KINGBRIGHT ELECTRONIC CO LTD

Package Description
1 X 0.50 MM, 0.50 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

Reach Compliance Code
compliant

HTS Code
8541.40.20.00

Samacsys Manufacturer
Kingbright

Color
GREEN

Color@Wavelength
Green

Configuration
SINGLE

Forward Current-Max
0.03 A

Forward Voltage-Max
2.5 V

Lens Type
WATER CLEAR

Luminous Intensity-Nom
55.0 mcd

Mounting Feature
SURFACE MOUNT

Number of Functions
1

Number of Terminals
2

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Optoelectronic Device Type
SINGLE COLOR LED

Overall Height
0.5 mm

Packing Method
TR, 7 INCH

Peak Wavelength
574 nm

Reverse Voltage-Max
5 V

Size
0.8 mm

Surface Mount
YES

Terminal Pitch
1.1 mm

Viewing Angle
120 deg

Download datasheets and manufacturer documentation for Kingbright APHHS1005CGCK.

Description:

The Kingbright APHHS1005CGCK is a discrete LED indication device with a green clear chip SMD package. It has a low power consumption and a wide viewing angle of 140°. The device is RoHS compliant and has a long life expectancy of up to 100,000 hours.

Features:

? Low power consumption
? Wide viewing angle of 140°
? RoHS compliant
? Long life expectancy of up to 100,000 hours
? High luminous intensity
? High reliability
? Low thermal resistance

Applications:

The Kingbright APHHS1005CGCK is suitable for a wide range of applications, including automotive, industrial, medical, and consumer electronics. It can be used for backlighting, indicators, and displays. It is also suitable for use in lighting fixtures, traffic signals, and other applications that require a bright, reliable LED indication.
