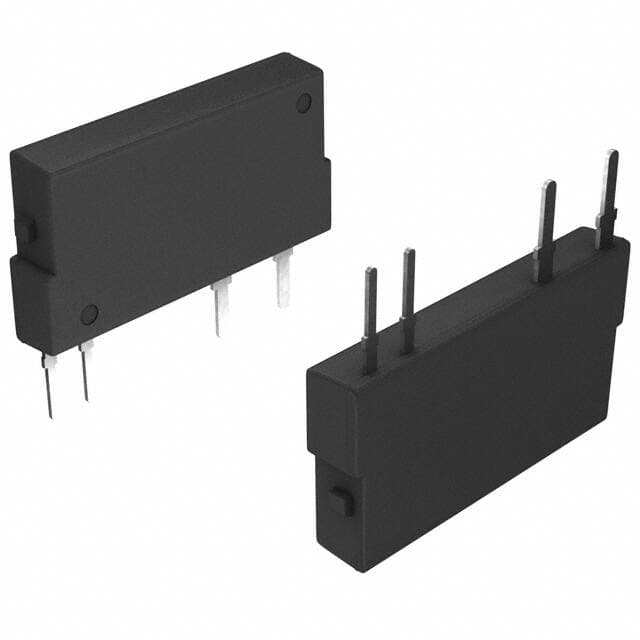

PANASONIC AQZ205

Manufacturer No:

AQZ205

Manufacturer:

PANASONIC

Package:

4-SIP

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AQZ205 information

PANASONIC AQZ205 technical specifications, attributes, parameters and parts with similar specifications to PANASONIC AQZ205.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Through Hole

Package / Case
4-SIP

Number of Pins
4

Packaging
Tube

Series
PhotoMOS? AQZ

Published
2000

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Resistance
340mOhm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
UL RECOGNIZED, VDE APPROVED

Power Rating
1.6W

Voltage - Rated DC
100V

Depth
3.5mm

Current Rating
2A

Termination Style
PC Pin

Approval Agency
cULus

Output Voltage
100V

Output Type
AC, DC

Max Output Current
2A

Number of Elements
1

Insulation Resistance
1GOhm

Voltage - Input
1.16VDC

Output Current
2A

Throw Configuration
SPST

Turn On Delay Time
10 ms

Optoelectronic Device Type
TRANSISTOR OUTPUT SSR

Forward Current
1mA

Max Output Voltage
100V

Max Input Voltage
1.5V

Rise Time
2.4ms

Relay Type
Relay

Voltage - Load
0V~100V

On-State Resistance (Max)
340mOhm

Max Input Current
50mA

Input Current
50mA

On-State Current-Max
2A

Isolation Voltage
2.5kV

Height
12.5mm

Length
21mm

Width
3.5mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for PANASONIC AQZ205.

Design Resources:

panasonicelectricworks-ala2pf12-designresources-5470.pdf

No product details available
