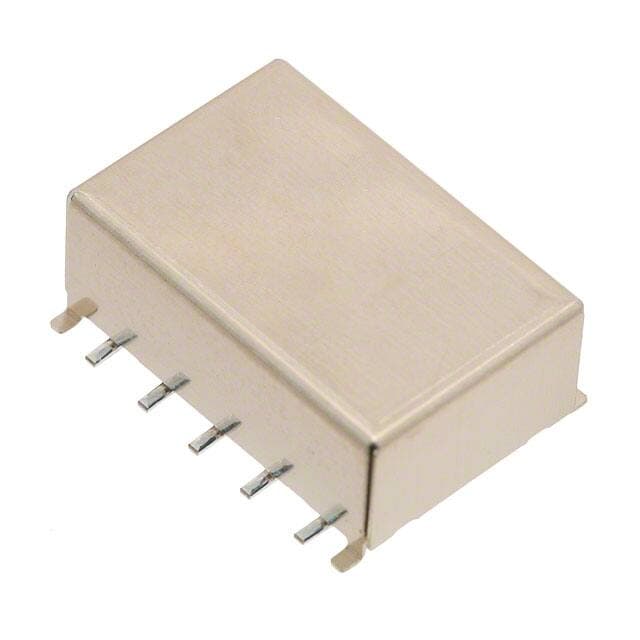

PANASONIC ARA220A05X

Manufacturer No:

ARA220A05X

Manufacturer:

PANASONIC

Package:

SMD/SMT

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ARA220A05X information

PANASONIC ARA220A05X technical specifications, attributes, parameters and parts with similar specifications to PANASONIC ARA220A05X.

Type
Parameter

Factory Lead Time
10 Weeks

Package / Case
SMD/SMT

Surface Mount
NO

Mounting Feature
SURFACE MOUNT-STRAIGHT

Weight
2g

End Contact Material
Silver Palladium

End Contact Plating
GOLD

Packaging
Tape & Reel (TR)

Published
2004

Part Status
Active

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
10

Termination
Gull Wing

ECCN Code
EAR99

HTS Code
8536.41.00.20

Packing Method
TAPE AND REEL

Reach Compliance Code
unknown

Body Length or Diameter
14.7mm

Operating Temperature (Max)
85°C

Body Breadth
9.7 mm

Physical Dimension
14.7mm x 9.7mm x 5.9mm

Operating Temperature (Min)
-40°C

Contact Resistance
75mOhm

Insulation Resistance
100000000Ohm

Contact Voltage(DC)-Max
30V

Electrical Life
100000 Cycle(s)

Throw Configuration
DPDT

Relay Type
RF RELAY

Coil Resistance
178Ohm

Operate Time
4 ms

Coil Voltage
5V

Release Time
4 ms

Contact (DC) Max Rating R Load
1A@30VDC

Coil Power
140mW

Operating Frequency-Max
1000MHz

Contact/Output Supply Type
DC

Relay Action
LATCHED

Coil/Input Supply Type
DC

VSWR
1.2

Input Power-Max (CW)
3W

Characteristic Impedance
50Ohm

Insertion Loss (Max)
0.3 dB

Dielectric Strength Between Open Contacts
750 Vrms

Input Switching Control Type
Random

Dielectric Strength Between Coil and Contacts
1000 Vrms

Coil Voltage(DC)-Max
5V

Coil Current(DC)-Max
0.028A

Download datasheets and manufacturer documentation for PANASONIC ARA220A05X.

Other Related Documents:

panasonicelectricworks-dsp1al2dc5v-otherrelateddocuments-9225.pdf

panasonicelectricworks-dsp1al2dc5v-otherrelateddocuments-9226.pdf

The Panasonic ARA220A05X is a high frequency, dual coil, latching signal relay. It is designed for use in a variety of applications, including telecommunications, industrial automation, and medical equipment. The relay features a 1 Amp DPDT (Double Pole Double Throw) configuration, and is rated for 5 VDC operation. It is a surface mount device (SMT) and is designed for high frequency operation.

Features of the Panasonic ARA220A05X include a low profile design, low power consumption, and a high switching speed. It is also designed to be highly reliable and durable, with a long life expectancy. The relay is RoHS compliant and is UL recognized.

Applications for the Panasonic ARA220A05X include switching and control of high frequency signals, such as those used in telecommunications and medical equipment. It can also be used in industrial automation systems, as well as in consumer electronics. The relay is suitable for use in a variety of environments, including those with high temperatures and humidity.
