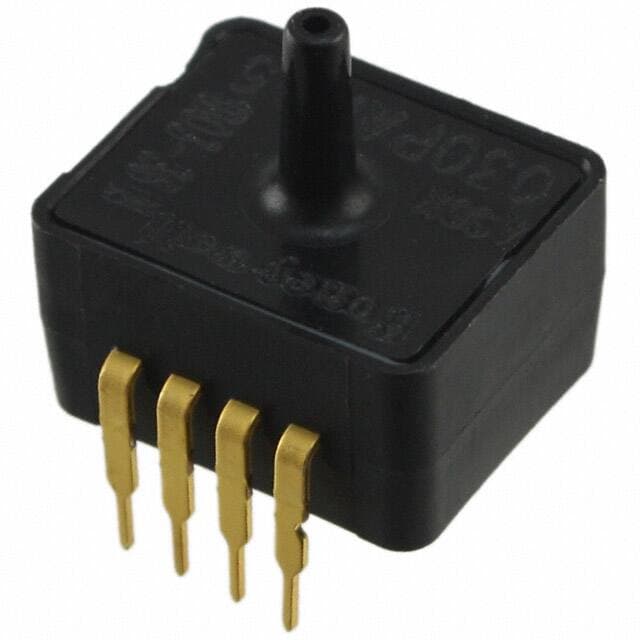

honeywell ASDXACX030PAAA5

Manufacturer No:

ASDXACX030PAAA5

Manufacturer:

honeywell

Package:

8-DIP Module

Description:

ASDX Series Absolute Pressure Sensor Analog Voltage -20°C~105°C 30PSI (206.84kPa) Barbless ±2% 0.5 V ~ 4.5 V 4.75V~5.25V Temperature Compensated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ASDXACX030PAAA5 information

honeywell ASDXACX030PAAA5 technical specifications, attributes, parameters and parts with similar specifications to honeywell ASDXACX030PAAA5.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
PCB, Through Hole

Package / Case
8-DIP Module

Number of Pins
8

Operating Temperature
-20°C~105°C

Series
ASDX

Published
2010

Feature
Temperature Compensated

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
PCB

Applications
Board Mount

Voltage - Rated
5V

Additional Feature
RATIOMETRIC 12-BIT ANALOG OUTPUT

Voltage - Rated DC
5V

Voltage - Supply
4.75V~5.25V

Output
0.5 V ~ 4.5 V

Termination Style
PC Pin

Body Breadth
14.02 mm

Output Type
Analog Voltage

Operating Supply Voltage
5V

Nominal Supply Current
2.5mA

Max Supply Current
3.5mA

Number of Bits
12

Response Time
1 ms

Operating Pressure
30PSI (206.84kPa)

Pressure Type
Absolute

Port Style
Barbless

Port Size
Male - 0.09 2.31mm Tube

Maximum Pressure
60PSI (413.69kPa)

Sensors/Transducers Type
PRESSURE SENSOR,STRAIN GUAGE

Max Pressure
60 PSI

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for honeywell ASDXACX030PAAA5.

ASDXACX030PAAA5 Overview

The Transducer 8-DIP Module is included in the package for convenience. It is recommended to set the temperature of the transducers to -20°C~105°C to ensure reliable operation. The transducers are capable of operating well at 4.75V~5.25V supply voltage. In order for the transducers to function properly, the 8 pins must be connected. If the nominal supply current is 2.5mA, the transducers will operate normally. In order to keep the transducers at the temperature they are rated for, the DC voltage needs to be 5V. The current of the transducers should not exceed 3.5mA, otherwise it will be dangerous.

ASDXACX030PAAA5 Features

Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: 8-DIP Module
Operating Temperature: -20°C~105°C
8 Pins
ASDX series
Operating Pressure: 30PSI (206.84kPa)
Operating Supply Voltage: 5V

ASDXACX030PAAA5 Applications

There are a lot of Honeywell Sensing and Productivity Solutions
ASDXACX030PAAA5 Transducers applications.

Weather Forecasting
Hydrogen Storage
Refrigerant pressure monitoring in HVAC/R systems
Dry air system pressure, process controls and automation
Dry air system monitoring
Hydraulic, brake, and engine oil fluid pressure monitoring
Air brake pressure monitoring
Vertical velocity indication (e.g. rise/sink speed)
Internet of things
Enhancement of GPS navigation
