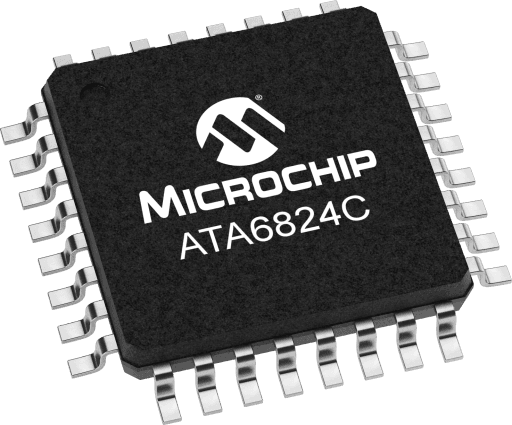

Microchip ATA6824C-MFHW-1

Manufacturer No:

ATA6824C-MFHW-1

Manufacturer:

Microchip

Package:

32-TQFP Exposed Pad

Description:

ATA6824C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATA6824C-MFHW-1 information

Microchip ATA6824C-MFHW-1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ATA6824C-MFHW-1.

Type
Parameter

Integrated LIN TR/RX
No

Integrated Op Amps
0

Max. Ron per Output (Ω)
25

Motor Control Methods
PWM, DIR

Motor Speed Output
No

Integrated Voltage Regs
1

Supply Voltage Max (V)
20

Supply Voltage Min (V)
7

Output Type
Gate Driver

TempRange Max
150

TempRange Min
-40

VRCurrent
100

Download datasheets and manufacturer documentation for Microchip ATA6824C-MFHW-1.

A high-temperature H-bridge motor driver designed for DC motor control applications in automotive high temperature environments. With a maximum junction temperature of 200ºC, this driver is suitable for applications with an ambient temperature up to 150ºC. The IC includes four driver stages to control four external power MOSFETs. An external microcontroller provides the direction signal and the PWM frequency.

PWM and direction-controlled driving of four externally-powered NMOS transistors
High temperature capability up to 200°C junction
A programmable dead time is included to avoid peak currents within the H-bridge
Integrated charge pump to provide gate voltages for high-side drivers and to supply the gate of the external battery reverse protection NMOS
5V/3.3V regulator and current limitation function
Reset derived from 5V/3.3V regulator output voltage
A programmable window watchdog
Battery overvoltage protection and battery undervoltage management
Overtemperature warning and protection (Shutdown)
High voltage serial interface for communication
TPQFP package
