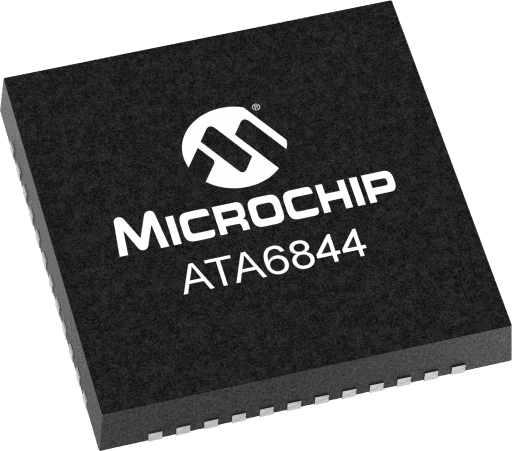

Microchip ATA6844-PLQW-1

Manufacturer No:

ATA6844-PLQW-1

Manufacturer:

Microchip

Package:

48-VFQFN Exposed Pad

Description:

ATA6844

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATA6844-PLQW-1 information

Microchip ATA6844-PLQW-1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ATA6844-PLQW-1.

Type
Parameter

Operating Voltage Min (V)
5.5

Operating Voltage Max (V)
32

Output Type
Gate Driver

Max. Ron per Output (Ω)
20

Motor Control Methods
Direct PWM Input

Motor Speed Output
No

Integrated OPAMPS
0

Ambient Temperature Operating Range Min (C)
-40

Ambient Temperature Operating Range Max (C)
150

Number of Voltage Regulators
1

Voltage Regulator Current (mA)
100

Integrated LIN Transceiver
Yes

Download datasheets and manufacturer documentation for Microchip ATA6844-PLQW-1.

System basis chip for three-phase brushless DC motor controllers designed in the Microchip 0.18-µm SOI technology SMART-I.S.™. The chip forms a BLDC motor control unit for automotive applications in combination with a microcontroller and six discrete power MOSFETs. Works in extended supply voltage range from 5.25V up to 32V. It features a Tjunction of up to 200°C. Its circuits provide a 3.3V/5V linear regulator and a window watchdog. It includes various control and protection functions like overvoltage and over-temperature protection, adjustable short circuit detection, undervoltage management and coast function. Its drivers fulfill maximum safety requirements and offer a high integration level to save cost and space.

Broad operation voltage range from 5.25V to 32V
ATA6844 extended temperature range TJ = 200°C
Direct driving of six external NMOS transistors with a maximum switching frequency of 50kHz
Integrated charge pump to provide gate voltages for high-side drivers and to supply the gate of the external battery reverse protection NMOS
Built-in 5V/3.3V voltage regulator with current limitation
Reset signal for the microcontroller
Sleep Mode with supply current of typically < 45μA
Wake-up via LIN bus or high voltage input
Programmable window watchdog
Battery overvoltage protection and battery under voltage management
Overtemperature warning and protection (shutdown)
Jump start compatible
LIN transceiver conformal to LIN 2.1 and SAEJ2602-2 with outstanding EMC and ESD performance
QFN48 package 7mm x 7m
