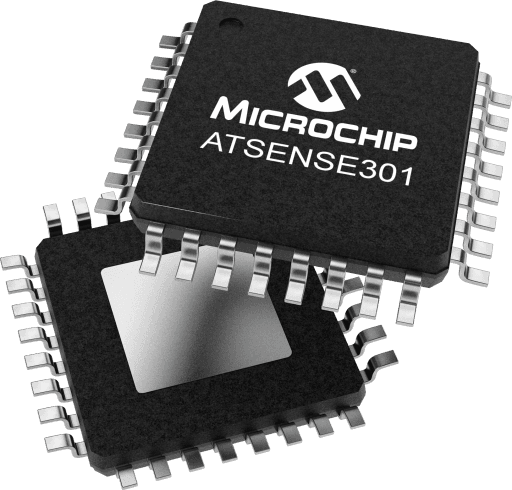

Microchip ATSENSE301A-AU
Microchip ATSENSE301A-AU

Microchip ATSENSE301A-AU

Manufacturer No:

ATSENSE301A-AU

Manufacturer:

Microchip

Package:

32-TQFP

Description:

ATSENSE301

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATSENSE301A-AU information

Microchip ATSENSE301A-AU technical specifications, attributes, parameters and parts with similar specifications to Microchip ATSENSE301A-AU.

  • Type
  • Parameter
  • Timers
  • 0
  • Temp# Range Min (deg C)
  • -40
  • Temp# Range Max (deg C)
  • 105
  • Operating Voltage Min (Vcc)
  • 3
  • Operating Voltage Max (Vcc)
  • 3.6
  • PWM Channels
  • 7
  • Anti-Tampering Inputs
  • 0
  • Temp Coefficient Type (ppm/degC)
  • 0
  • Reactive Energy Accy (%)
  • 0
  • Active Meas# Accy (%)
  • 0
  • Active Energy Accy (%)
  • 0
  • Flash (kBytes)
  • 0
  • ADC Resolution (bits)
  • 0
  • Max I/O Pins
  • 0
  • UART
  • 0
  • SRAM (kBytes)
  • 0
  • Meter Type
  • Poly-Phase
  • ADC Channels
  • 0
  • Dynamic Range
  • 3000:1

Download datasheets and manufacturer documentation for Microchip ATSENSE301A-AU.

Data Sheets:

User Guide:

Application Notes:

ATSENSE-301(H) are multi-channel analog front end devices which integrate seven simultaneously sampled Sigma-Delta A/D converters, a high-precision voltage reference with up to 10 ppm/ºC temperature stability (H-versions), a programmable current signal amplification, a temperature sensor and an SPI interface. Designed to support energy measurement applications in combination with the Microchip's ATSAM4C device family that features a dedicated Cortex®-M4 processor and metrology library and a variety of sensors including Shunt, Current Transformer and Rogowski coils, the ATSENSE-301(H) achieve ANSI C12.20-2002 and IEC 62053-22 metering accuracy classes of up to 0.2% over 3000:1 current range.



    • Poly-phase (ATSENSE-301(H)) Energy Metering Analog Front End for Microchip MCUs and Metrology Library
    • Compliant with Class 0.2 Standards (ANSI C12.20-2002 and IEC 62053-22)
    • Seven Sigma-Delta ADC Measurement Channels: Three Voltages, Four Currents, 102 dB Dynamic Range
    • Current Channels with Pre-Gain (x1, x2, x4, x8) Supports Shunt, Current Transformer and Rogowski Coil
    • Dedicated Current Channel for Anti-tamper Measurement
    • Integrated SINC Decimation Filters. Output Data Rate: 16 kSps typical
    • Integrated 2.8V LDO Regulator to Supply Analog Functions
    • 3.0V to 3.6V Operation, Ultra Low Power: < 2.5 mW typical/Channel @ 3.3V
    • Specified over two ambient operating temperature ranges : [-40°C ; +85°C] and [-40°C;+105°C]
    • Standard 1.2V Output Voltage with Possible External Bypass
    • Temperature Drift: 50 ppm typical (ATSENSE-301)
    • Temperature Drift: 10 ppm typical (ATSENSE-301H)
    • Factory-measured Temperature Drift and Die Temperature Sensor to perform Software Correction (ATSENSE-301H)
    • 8.192 MHz Serial Peripheral Interface (SPI) Compatible Mode 1 (8-bit) for ADC Data and AFE Controls
    • Interrupt Output Line Signaling ADC End-of-Conversion, Underrun and Overrun

User Guide
