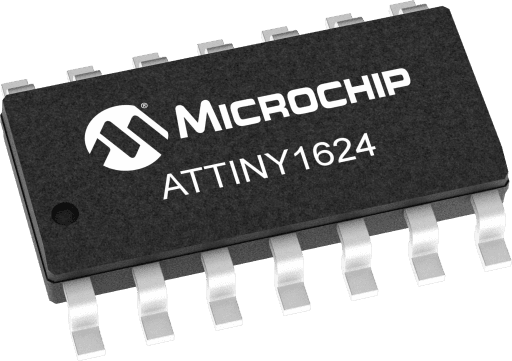

Microchip ATTINY1624-SSFR

Manufacturer No:

ATTINY1624-SSFR

Manufacturer:

Microchip

Package:

Description:

Series of microcontrollers featuring the 8-bit AVR processor with low power including Event System, intelligent analog and advanced peripherals.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ATTINY1624-SSFR information

Microchip ATTINY1624-SSFR technical specifications, attributes, parameters and parts with similar specifications to Microchip ATTINY1624-SSFR.

Type
Parameter

Program Memory Size (KB)
16

RAM
2048

Data EEPROM (bytes)
256

Pin Count
14

Operation Voltage Max.(V)
5.5

Operation Voltage Min.(V)
1.8

ADC Resolution Max
12

ADC Channels
9

Zero Cross Detect
False

Number of Comparators
1

Stand alone PWM
3

Low Power
No

Numerically Controlled Oscillator (NCO)
0

Data Signal Modulator (DSM)
0

Download datasheets and manufacturer documentation for Microchip ATTINY1624-SSFR.

The ATtiny1624 is a microcontroller featuring the AVR^® CPU with hardware multiplier, running at up to 20 MHz and with 16 KB Flash, 2 KB SRAM and 256B EEPROM in 14-pin TSSOP and SOIC packages. The family uses the latest Core Independent Peripherals with low-power features, including Event System, intelligent analog and advanced peripherals.

The new 12-bit ADC offers true differential measuring capabilities with optional hardware accumulation of up to 1024 samples, which effectively gives up to 17-bits resolution. With sampling rates up to 375 ksps, the analog data is available very rapidly. The Programmable Gain Amplifier (PGA) for the ADC can amplify single-ended and differential analog inputs to make it possible to measure even small amplitude signals efficiently.

ATtiny1627 Product Family Overview (tinyAVR 2 Family)

Functional Safety

This product is suitable for safety-critical applications that target home appliances (IEC 60730), automotive (ISO 26262) and industrial (IEC 61508) products. We have important documentation and tools available to aid developers of safety applications—refer to the product feature list for links to the specific safety collateral. TÜV SÜD-certified MPLAB® X Integrated Development Environment (IDE) tools, such as the MPLAB XC8 Functional Safety Compiler, are also available for this product.

Running at up to 20 MHz
Single Cycle I/O Access
Two-level Interrupt Controller
Sleep modes: Idle, Standby, Power-down
6 channels Event System
Configurable Custom Logic (CCL)
Single pin programming and debugging interface (UPDI)

1x 16-bit Timer/Counter type A (TCA)
2x 16-bit Timer/Counter type B (TCB)
1x 16-bit Real Time Counter (RTC) with Periodic Interrupt Controller (PIT)

Power-On Reset (POR)
Brown-Out-Detection (BOD)
Voltage Level Monitor (VLM)
Cyclic Redundancy Check (CRC) Scan
Window Watchdog Timer (WWDT)

Serial communication interfaces: 2x USART, SPI, I2C
