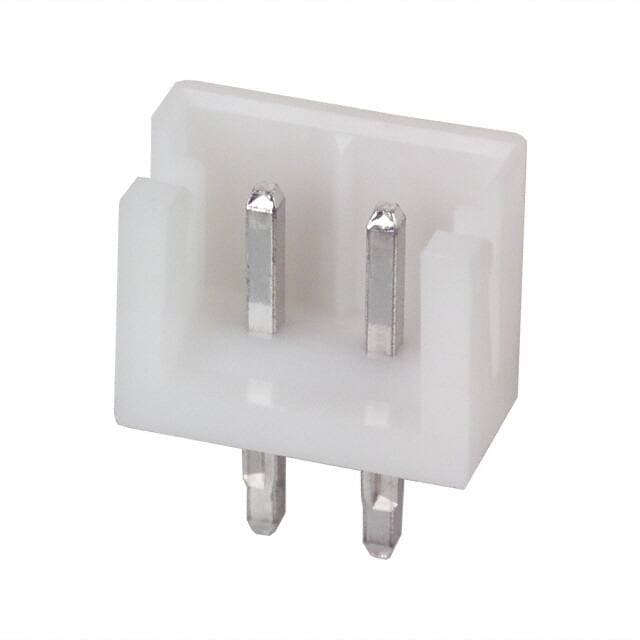

JST B2B-EH-A(LF)(SN)

Manufacturer No:

B2B-EH-A(LF)(SN)

Manufacturer:

Package:

Description:

EH Series 1-Row Header Press-Fit, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.236 6.00mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B2B-EH-A(LF)(SN) information

JST B2B-EH-A(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B2B-EH-A(LF)(SN).

Type
Parameter

Factory Lead Time
18 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polyamide (PA66), Nylon 6/6

Housing Material
Nylon

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
EH

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Press-Fit, Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Color
White

Number of Rows
1

Gender
Male

Additional Feature
POLARIZED, TOP ENTRY, SHROUDED

HTS Code
8536.69.40.40

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Straight

Depth
3.8mm

Insulation Height
0.236 6.00mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.098 2.50mm

Insulation Color
Natural

Contact Length - Post
0.126 3.20mm

Shrouding
Shrouded - 3 Wall

Lead Pitch
2.5mm

Contact Length - Mating
0.130 3.30mm

UL Flammability Code
94V-0

Contact Resistance
20mOhm

Max Voltage Rating (AC)
250V

Download datasheets and manufacturer documentation for JST B2B-EH-A(LF)(SN).

Datasheets:

jstsalesamericainc-seh001tp06-datasheets-3021.pdf

B2B-EH-A(LF)(SN) Overview

Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the EH Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as POLARIZED, TOP ENTRY, SHROUDED, to name a few.Through Hole represents the mounting point for the part.-25°C~85°C Operating Temperature is the default operating temperature for the device.

B2B-EH-A(LF)(SN) Features

EH series

B2B-EH-A(LF)(SN) Applications

There are a lot of JST Sales America Inc.
B2B-EH-A(LF)(SN) Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
