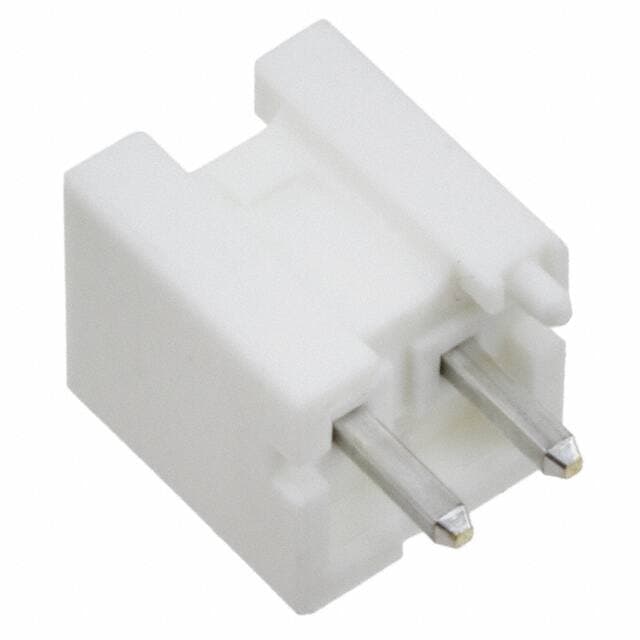

JST B2P-VH-FB-B(LF)(SN)

Manufacturer No:

B2P-VH-FB-B(LF)(SN)

Manufacturer:

JST

Package:

Description:

VH Series 1-Row Header Solder Bulk Through Hole 2-Position Board to Cable/Wire 0.433 11.00mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B2P-VH-FB-B(LF)(SN) information

JST B2P-VH-FB-B(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B2P-VH-FB-B(LF)(SN).

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Contact Finish Mating
Tin

Contact Materials
Copper Alloy

Insulation Materials
Polybutylene Terephthalate (PBT), Glass Filled

Voltage Rated
250V

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
VH

Published
2008

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
1

HTS Code
8536.69.40.40

Fastening Type
Locking Ramp

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
10A

Terminal Pitch
3.96mm

Insulation Height
0.433 11.00mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.156 3.96mm

Insulation Color
Natural

Contact Length - Post
0.146 3.70mm

Shrouding
Shrouded - 4 Wall

UL Flammability Code
94V-0

Features
Board Guide

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST B2P-VH-FB-B(LF)(SN).

Datasheets:

jstsalesamericainc-b2pvhtwlfsn-datasheets-3470.pdf

Product Description:

The JST Sales America Inc. B2P-VH-FB-B(LF)(SN) is a high-quality, lead-free rectangular connector designed for use in a variety of applications. This connector features a header type design with male pins, making it ideal for board-to-cable or wire connections.

Features:

Contact finish mating: Tin
Contact length - post: 0.146mm (3.70mm)
Contact materials: Copper alloy
Contact shape: Square
Contact type: Male pin
Current rating: 10A
Fastening type: Locking ramp
Features: Board guide
Insulation materials: Polybutylene terephthalate (PBT), glass filled
Operating temperature: -25°C to 85°C
Packaging: Bulk
Part status: Active
Pbfree code: Yes
RoHS status: ROHS3 compliant
Series: VH
Shrouding: Shrouded - 4 wall
Style: Board to cable/wire
Terminal pitch: 3.96mm
Termination: Solder
Voltage rated: 250V

Applications:

Primary applications: Use in industrial automation, medical devices, and consumer electronics for board-to-cable or wire connections.
Secondary applications: Use in automotive, aerospace, and defense industries for high-reliability connections.

Alternative Parts:

JST Sales America Inc. B2P-VH-FB-B(LF)(SN) is an alternative to other rectangular connectors with similar specifications, such as the Amphenol 2.5mm pitch connector.

Embedded Modules:

This connector is used in various embedded modules, including:
- Industrial control systems
- Medical devices
- Consumer electronics

FAQs:

Q: What is the current rating of the connector? A: The current rating of the connector is 10A.

Q: What is the operating temperature range of the connector? A: The operating temperature range of the connector is -25°C to 85°C.

Q: Is the connector RoHS compliant? A: Yes, the connector is ROHS3 compliant.

Q: What is the termination type of the connector? A: The termination type of the connector is solder.

Q: What is the voltage rating of the connector? A: The voltage rating of the connector is 250V.

Q: What is the material flammability rating of the connector? A: The material flammability rating of the connector is UL94 V-0.

Q: What is the moisture sensitivity level of the connector? A: The moisture sensitivity level of the connector is MSL 1 (unlimited).

Q: What is the factory lead time for the connector? A: The factory lead time for the connector is 18 weeks.
