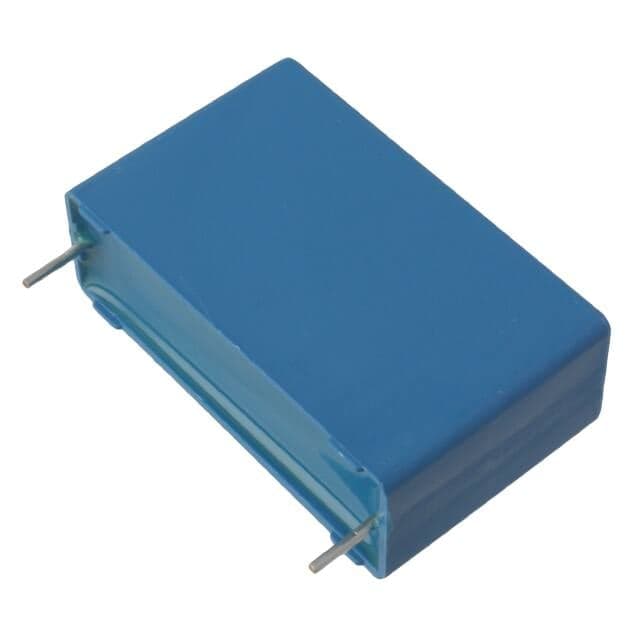

TDK B32674D1105K000

Manufacturer No:

B32674D1105K000

Manufacturer:

TDK

Package:

Radial

Description:

B32674 1?F Film Capacitor ±10% Radial PC Pins 750V-DC Polypropylene (PP), Metallized

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B32674D1105K000 information

TDK B32674D1105K000 technical specifications, attributes, parameters and parts with similar specifications to TDK B32674D1105K000.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
Radial

Surface Mount
NO

Terminal Shape
WIRE

Dielectric Material
Polypropylene (PP), Metallized

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
B32674

Size / Dimension
1.240Lx0.492W 31.50mmx12.50mm

Tolerance
±10%

JESD-609 Code
e3

Feature
Long Life

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
PC Pins

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Applications
DC Link, DC Filtering

HTS Code
8532.25.00.70

Capacitance
1?F

Voltage - Rated DC
750V

Capacitor Type
FILM CAPACITOR

ESR (Equivalent Series Resistance)
24.2mOhm

Lead Spacing
1.083 27.50mm

Rated (DC) Voltage (URdc)
900V

Height Seated (Max)
0.846 21.50mm

Length
31.5mm

Width
12.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TDK B32674D1105K000.

Datasheets:

tdkelectronicsinc-49576595kit-datasheets-5183.pdf

B32674D1105K000 Overview

To work properly, systems need a rated (DC) voltage of 900V.This device has 24.2mOhm ESR (Equivalent Series Resistance).Electrical devices such as this have a lead spacing of 1.083 27.50mm.In addition to operating at -40°C~105°C degrees, the device is capable of operating at other temperatures as well.

B32674D1105K000 Features

a rated (DC) voltage (URdc) of 900V
24.2mOhm equivalent series resistance (ESR)

B32674D1105K000 Applications

There are a lot of TDK Electronics Inc.
B32674D1105K000 applications of film capacitors.

Satellite TV
Global positioning systems
Filters
VCO's
Matching networks
Snubbering
Filtering
IGBT
Compact fluorescent lamps (CFL)
Switch mode power supplies
