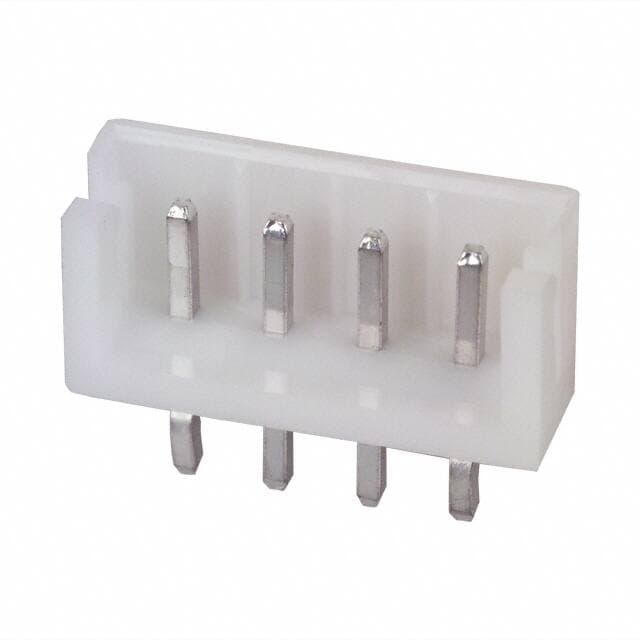

JST B4B-EH-A(LF)(SN)
JST B4B-EH-A(LF)(SN)

JST B4B-EH-A(LF)(SN)

Manufacturer No:

B4B-EH-A(LF)(SN)

Manufacturer:

JST

Package:

Description:

EH Series 1-Row Header Press-Fit, Solder Bulk Through Hole 4-Position Board to Cable/Wire 0.236 6.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B4B-EH-A(LF)(SN) information

JST B4B-EH-A(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B4B-EH-A(LF)(SN).

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Housing Material
  • Nylon
  • Contact Finish Mating
  • Tin
  • Contact Length-Mating
  • 0.130 3.30mm
  • Contact Materials
  • Brass
  • Insulation Materials
  • Polyamide (PA66), Nylon 6/6
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Series
  • EH
  • Published
  • 2008
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Press-Fit, Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 4
  • Number of Rows
  • 1
  • Gender
  • Male
  • Additional Feature
  • POLARIZED, TOP ENTRY, SHROUDED
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Orientation
  • Straight
  • Depth
  • 3.8mm
  • Insulation Height
  • 0.236 6.00mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.098 2.50mm
  • Insulation Color
  • Natural
  • Contact Length - Post
  • 0.126 3.20mm
  • Shrouding
  • Shrouded - 3 Wall
  • Lead Pitch
  • 2.5mm
  • Housing Color
  • White
  • Contact Resistance
  • 20mOhm
  • Max Voltage Rating (AC)
  • 250V
  • Max Current Rating
  • 3A
  • Height
  • 6mm

Download datasheets and manufacturer documentation for JST B4B-EH-A(LF)(SN).

Datasheets:

Product Description:

The JST Sales America Inc. B4B-EH-A(LF)(SN) is a high-quality, rectangular connector header with male pins, designed for various applications in the electronics industry. This polarized, top-entry, shrouded connector features a unique design that ensures reliable connections and easy handling.

Features:

  • Polarized and Top-Entry Design: Ensures secure connections and easy mating.
  • Shrouded Construction: Provides additional protection against environmental factors.
  • Male Pins: Designed for board-to-cable or wire connections.
  • Contact Materials: Made of high-quality brass with a low contact resistance of 20mOhm.
  • Current Rating: Supports up to 3A of current.
  • Operating Temperature: Suitable for use in temperatures ranging from -25°C to 85°C.
  • Lead-Free and RoHS Compliant: Meets the latest environmental regulations.
  • Mounting Type: Through-hole mounting for easy installation.

Applications:

  • Primary Applications: Board-to-cable or wire connections in various electronic devices, such as industrial control systems, medical equipment, and automotive systems.
  • Secondary Applications: Use in consumer electronics, such as smartphones, laptops, and gaming consoles, as well as in industrial automation and robotics.

Alternative Parts:

  • B4B-EH-A(LF)(SN): This is the primary part number, but alternative part numbers may include variations in contact materials, termination types, or shrouding styles.

Embedded Modules:

  • Various Electronic Devices: This connector is used in various electronic devices, including industrial control systems, medical equipment, automotive systems, consumer electronics, and industrial automation systems.

FAQs:

Q: What is the maximum current rating of this connector? A: The maximum current rating is 3A.

Q: What is the operating temperature range of this connector? A: The operating temperature range is -25°C to 85°C.

Q: Is this connector lead-free and RoHS compliant? A: Yes, this connector is lead-free and RoHS compliant.

Q: What is the mounting type of this connector? A: The mounting type is through-hole.

Q: What is the contact material used in this connector? A: The contact material is high-quality brass.

Q: What is the contact resistance of this connector? A: The contact resistance is 20mOhm.

Q: What is the shrouding style of this connector? A: The shrouding style is 3-wall shrouded.

Q: What is the packaging type of this connector? A: The packaging type is bulk.

Q: What is the part status of this connector? A: The part status is active.

Q: What is the factory lead time for this connector? A: The factory lead time is 18 weeks.
