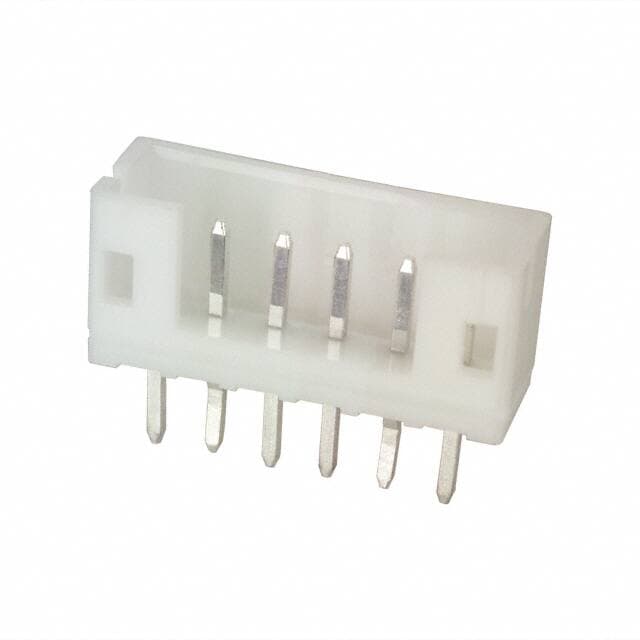

JST B6B-PH-K-S(LF)(SN)
JST B6B-PH-K-S(LF)(SN)

JST B6B-PH-K-S(LF)(SN)

Manufacturer No:

B6B-PH-K-S(LF)(SN)

Manufacturer:

JST

Package:

Description:

PH Series 1-Row Header Press-Fit, Solder Bulk Through Hole Board to Cable/Wire 0.236 6.00mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B6B-PH-K-S(LF)(SN) information

JST B6B-PH-K-S(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST B6B-PH-K-S(LF)(SN).

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Housing Material
  • Polyamide
  • Weight
  • 28.349523g
  • Contact Finish Mating
  • Tin
  • Contact Length-Mating
  • 0.130 3.30mm
  • Contact Materials
  • Brass
  • Insulation Materials
  • Polyamide (PA66), Nylon 6/6
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Series
  • PH
  • Published
  • 1997
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Press-Fit, Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Rows
  • 1
  • Gender
  • Male
  • Additional Feature
  • TOP ENTRY
  • Voltage - Rated DC
  • 100V
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Orientation
  • Straight
  • Depth
  • 4.5mm
  • Insulation Height
  • 0.236 6.00mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 2A
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Natural
  • Voltage - Rated AC
  • 100V
  • Contact Length - Post
  • 0.134 3.40mm
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 2mm
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • White
  • Working Voltage
  • 100V

Download datasheets and manufacturer documentation for JST B6B-PH-K-S(LF)(SN).

Datasheets:

B6B-PH-K-S(LF)(SN) Overview


Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the PH Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as TOP ENTRY, to name a few.Through Hole represents the mounting point for the part.-25°C~85°C Operating Temperature is the default operating temperature for the device.
