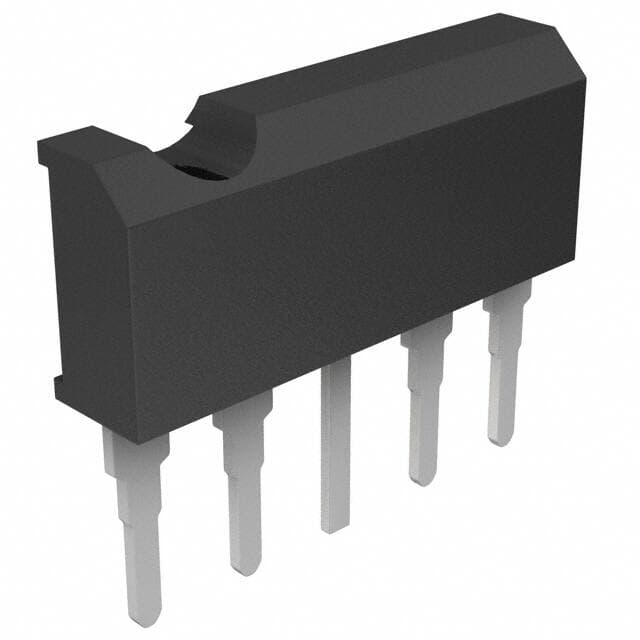

ROHM BA6161N

Manufacturer No:

BA6161N

Manufacturer:

ROHM

Package:

5-SIP

Description:

5 Terminals 3V BA6161 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs Tube 3mA 5-SIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA6161N information

ROHM BA6161N technical specifications, attributes, parameters and parts with similar specifications to ROHM BA6161N.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
5-SIP

Operating Temperature
-20°C~75°C TA

Packaging
Tube

Published
1999

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Tin/Copper (Sn/Cu)

Subcategory
Switching Regulator or Controllers

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
260

Terminal Pitch
2.54mm

Frequency
100kHz

Time@Peak Reflow Temperature-Max (s)
10

Base Part Number
BA6161

JESD-30 Code
R-PSIP-T5

Function
Step-Up

Number of Outputs
1

Output Voltage
35V

Output Type
Adjustable

Max Output Current
3mA

Voltage - Input (Min)
3V

Input Voltage-Nom
9V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
3mA

Voltage - Output (Min/Fixed)
30V

Topology
Boost

Control Mode
VOLTAGE-MODE

Synchronous Rectifier
No

Height Seated (Max)
6.3mm

Width
2.4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM BA6161N.

Datasheets:

rohm-ba6161n-datasheets-3070.pdf

BA6161N Overview

This harley voltage regulator utilizes the Tube package for optimized performance. There are 5 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. This harley voltage regulator is available in the 5-SIP package for the purpose of space saving. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Adjustable output on its output pins. This voltage regulator 12v fits the Through Hole mounting. When operating, adjusting voltage regulator's operating temperature should be kept at -20°C~75°C TA. This voltage regulator is able to operate with the minimal input voltage of 3V. DC DC switching regulator's output voltage (Min/Fixed) amounts to 30V. The output current of 3mA makes dc to dc voltage regulator feature maximum design flexibility. Voltage regulator has an input voltage (Max) of 16V. The peak reflow temperature of this regulator amounts to 260 to be essentially indestructible. Voltage regulator is designed to provide a nominal input voltage of 9V to meet the operation requirements. This voltage regulator is included in the Switching Regulator or Controllers subcategory. This DC/DC regulator belongs to the BA6161 family. The adjusting voltage regulator's output voltage is maintain at 35V. Voltage regulator's maximal output current reaches 3mA A to meet the operation requirements. It is capable of maintaining high accuracy with the dc to dc voltage regulator's frequency of 100kHz.
