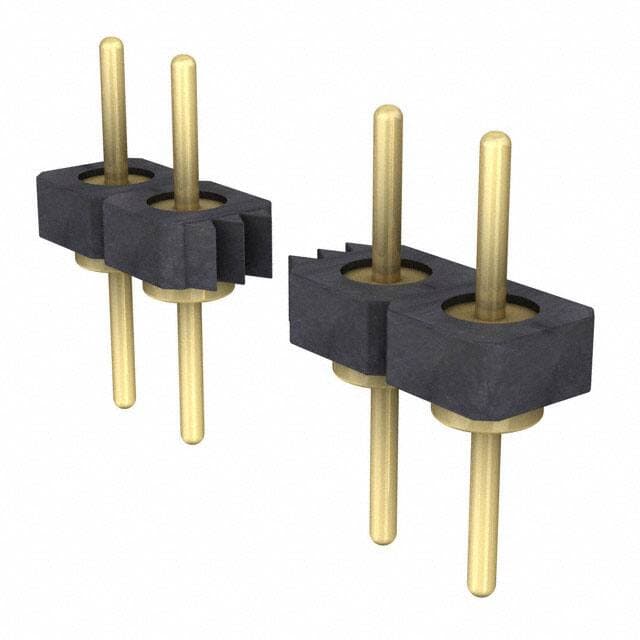

SAMTEC BBL-115-G-E

Manufacturer No:

BBL-115-G-E

Manufacturer:

Package:

Description:

BBL Series 1-Row Header Solder Brass, Bronze Bulk Through Hole Gold Liquid Crystal Polymer (LCP) 15-Position Board to Board 0.070 1.78mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BBL-115-G-E information

SAMTEC BBL-115-G-E technical specifications, attributes, parameters and parts with similar specifications to SAMTEC BBL-115-G-E.

Type
Parameter

Contact Material
Brass, Bronze

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Circular

Insulation Material
Liquid Crystal Polymer (LCP)

Housing Material
Polyester

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
BBL

Published
2008

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
15

Number of Rows
1

Gender
Male

Additional Feature
LOW PROFILE

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Straight

Depth
2.54mm

Insulation Height
0.070 1.78mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Contact Length - Post
0.125 3.18mm

Shrouding
Unshrouded

Number Of PCB Rows
1

Contact Finish - Post
Nickel

Contact Length - Mating
0.105 2.67mm

PCB Contact Pattern
RECTANGULAR

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Overall Contact Length
0.300 7.62mm

Max Current Rating
1A

Download datasheets and manufacturer documentation for SAMTEC BBL-115-G-E.

Datasheets:

samtec-bbl115ge-datasheets-7945.pdf

BBL-115-G-E Overview

The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the BBL Series.To name a few, there is also LOW PROFILE.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
