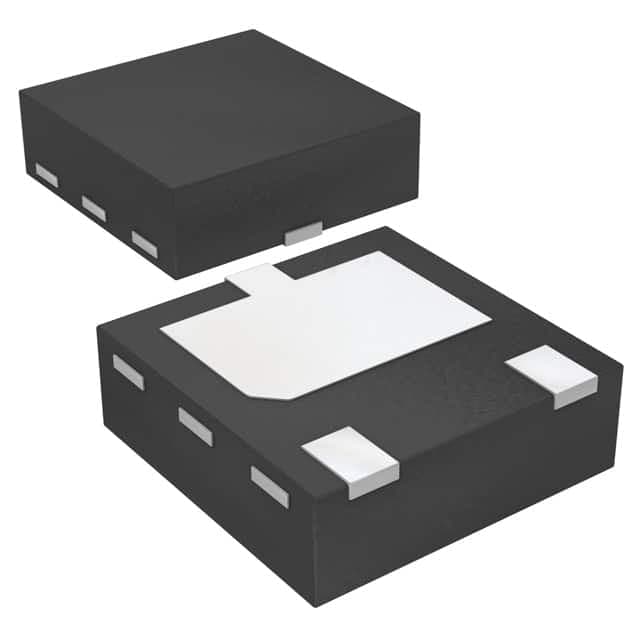

NEXPERIA BC53-16PA,115
NEXPERIA BC53-16PA,115

NEXPERIA BC53-16PA,115

Manufacturer No:

BC53-16PA,115

Manufacturer:

NEXPERIA

Package:

3-PowerUDFN

Description:

PNP 150°C TJ 100nA ICBO 1 Elements 3 Terminations SILICON PNP 3-PowerUDFN Tape & Reel (TR) Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BC53-16PA,115 information

NEXPERIA BC53-16PA,115 technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA BC53-16PA,115.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 3-PowerUDFN
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2011
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • Max Power Dissipation
  • 420mW
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • Frequency
  • 145MHz
  • Pin Count
  • 3
  • Number of Elements
  • 1
  • Configuration
  • SINGLE
  • Power Dissipation
  • 1.65W
  • Case Connection
  • COLLECTOR
  • Power - Max
  • 420mW
  • Polarity/Channel Type
  • PNP
  • Transistor Type
  • PNP
  • Collector Emitter Voltage (VCEO)
  • 80V
  • Max Collector Current
  • 1A
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 63 @ 150mA 2V
  • Current - Collector Cutoff (Max)
  • 100nA ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 500mV @ 50mA, 500mA
  • Collector Emitter Breakdown Voltage
  • 80V
  • Transition Frequency
  • 145MHz
  • Max Breakdown Voltage
  • 80V
  • Collector Base Voltage (VCBO)
  • 100V
  • Emitter Base Voltage (VEBO)
  • 5V
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA BC53-16PA,115.

Datasheets:

PCN Packaging:

ReachStatement:

BC53-16PA,115 Overview


In this device, the DC current gain is 63 @ 150mA 2V, which is calculated by taking the ratio of the base current to collector current and dividing transistor by two.Saturation of VCE means Ic is at its maximum value (saturated), and VCE saturation (Max) is 500mV @ 50mA, 500mA.Keeping the emitter base voltage at 5V allows for a high level of efficiency.145MHz is present in the transition frequency.An input voltage of 80V volts is the breakdown voltage.Maximum collector currents can be below 1A volts.

BC53-16PA,115 Features


the DC current gain for this device is 63 @ 150mA 2V
the vce saturation(Max) is 500mV @ 50mA, 500mA
the emitter base voltage is kept at 5V
a transition frequency of 145MHz


BC53-16PA,115 Applications


There are a lot of Nexperia USA Inc.
BC53-16PA,115 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
