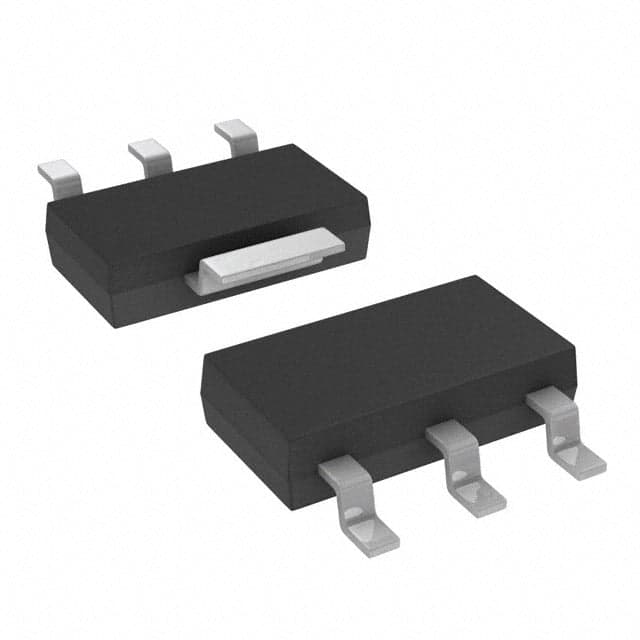

ONSEMI BCP56
ONSEMI BCP56

ONSEMI BCP56

Manufacturer No:

BCP56

Manufacturer:

ONSEMI

Package:

TO-261-4, TO-261AA

Description:

NPN -55°C~150°C TJ 100nA ICBO 1 Elements TO-261-4, TO-261AA Tape & Reel (TR) Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BCP56 information

ONSEMI BCP56 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI BCP56.

  • Type
  • Parameter
  • Lifecycle Status
  • LAST SHIPMENTS (Last Updated: 1 week ago)
  • Factory Lead Time
  • 21 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-261-4, TO-261AA
  • Number of Pins
  • 3
  • Supplier Device Package
  • SOT-223-4
  • Weight
  • 188mg
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2017
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Voltage - Rated DC
  • 80V
  • Max Power Dissipation
  • 1W
  • Current Rating
  • 1.2A
  • Base Part Number
  • BCP56
  • Number of Elements
  • 1
  • Polarity
  • NPN
  • Element Configuration
  • Single
  • Power Dissipation
  • 1W
  • Transistor Type
  • NPN
  • Collector Emitter Voltage (VCEO)
  • 80V
  • Max Collector Current
  • 1.2A
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 40 @ 150mA 2V
  • Current - Collector Cutoff (Max)
  • 100nA ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 500mV @ 50mA, 500mA
  • Collector Emitter Breakdown Voltage
  • 80V
  • Voltage - Collector Emitter Breakdown (Max)
  • 80V
  • Current - Collector (Ic) (Max)
  • 1.2A
  • Collector Emitter Saturation Voltage
  • 50V
  • Max Breakdown Voltage
  • 80V
  • Collector Base Voltage (VCBO)
  • 100V
  • Emitter Base Voltage (VEBO)
  • 5V
  • hFE Min
  • 40
  • Height
  • 1.6mm
  • Length
  • 6.5mm
  • Width
  • 3.5mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ONSEMI BCP56.

Datasheets:

PCN Obsolescence/ EOL:

PCN Design/Specification:

PCN Packaging:

Bcp56 Description
:
A low-frequency power amplifier is the NPN transistor BCP56. These NPN Silicon Epitaxial transistors were created for use in audio amplifiers. The device is packaged in a SOT223 package, which is intended for medium-power surface mount applications.
Vceo: 80, Vcbo: 100, Vbeo: 5, Ic=1A, DC magnification: Hfe, min>=25, max>=250, NPN transistor BCP56 is a medium power tube. The current gain bandwidth product ft (MHz) must be at least 50. (Typ). The NPN transistor is made up of three semiconductors: two N-type and one P-type, with the P-type semiconductor in the center and two N-type semiconductors on both sides. The triode is the most significant device in an electronic circuit, with current amplification and switching as its primary functions.

Bcp56 Features
:
? High Current: 1.0 A
? The SOT?223 package can be soldered using wave or reflow. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die
? Available In 12 mm Tape And Reel
Use BCP56T1G To Order The 7 Inch/1000 Unit Reel
Use BCP56T3G To Order The 13 Inch/4000 Unit Reel
? PNP Complement Is BCP53T1G
? S And NSV Prefix For Automotive And Other Applications
Requiring Unique Site And Control Change Requirements; AEC?Q101 Qualified And PPAP Capable
? These Devices Are Pb?Free, Halogen Free/BFR Free And Are RoHS Compliant

Bcp56 Applications
:
Linear Voltage Regulators
Low-Side Switches
Battery-driven Devices
Power Management
MOSFET Drivers
Audio Amplifier
Medium Power Surface Mount Applications
