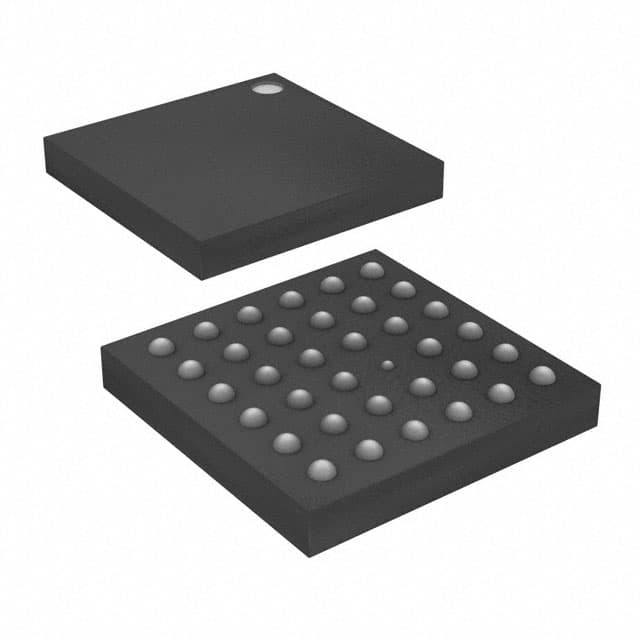

ROHM BD6085GUL-E2

Manufacturer No:

BD6085GUL-E2

Manufacturer:

ROHM

Package:

35-VFBGA

Description:

1.83.6V 0.5mm PMIC BD608* 36 Pin 900kHz 3.6V 35-VFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD6085GUL-E2 information

ROHM BD6085GUL-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD6085GUL-E2.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
35-VFBGA

Number of Pins
36

Operating Temperature
-35°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2008

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
35

ECCN Code
EAR99

Type
DC DC Regulator

Applications
Backlight

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Max Power Dissipation
1.325W

Terminal Position
BOTTOM

Terminal Form
BALL

Number of Functions
1

Supply Voltage
3.6V

Terminal Pitch
0.5mm

Frequency
900kHz

Pin Count
35

JESD-30 Code
S-PBGA-B35

Number of Outputs
7 + 4LDOs

Operating Supply Voltage
5.5V

Power Supplies
1.83.6V

Output Current
200mA

Voltage - Output
5.1V

Topology
Switched Capacitor (Charge Pump)

Current - Output / Channel
30mA

Internal Switch(s)
Yes

Number of Segments
7

Voltage - Supply (Min)
2.7V

Multiplexed Display Capability
NO

Data Input Mode
SERIAL

Height Seated (Max)
0.55mm

Width
3.3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BD6085GUL-E2.

Datasheets:

rohmsemiconductor-bd6085gule2-datasheets-5765.pdf

BD6085GUL-E2 Overview

Its 35-VFBGA package is used to save board space. There are 7 + 4LDOs outputs used for the design of this LED drivers.It adopts the way of Surface Mount for mounting.It emergys as a DC DC Regulator with high efficiency and reliable performance.It is able to work normally at the operating temperature of -35°C~85°C TA.It provides considerable benefits for Backlight.It operates based on the frequency of 900kHz.35 terminations are designed for its operation.There are 36 pins used to form the base of its configuration.If the voltage supply is less than 2.7V, undetermined failures will occur.There are 7 segments.It is mounted in the way of Surface Mount.This LED driver can be found under the base part number BD608*.The voltage at the output terminal is 5.1V.It is equipped with 35 pin count.It is also classified into Display Drivers according to its characteristics.The current that can be supplied to the load is 200mA.The internal voltages needed to power systems is 5.5V.

BD6085GUL-E2 Features

Available in the 35-VFBGA package
Operating temperature of -35°C~85°C TA
Frequency of 900kHz
Supply voltage of 3.6V
Operating with the supply voltage of 5.5V

BD6085GUL-E2 Applications

There are a lot of ROHM Semiconductor
BD6085GUL-E2 LED Driver ICs applications.

General lighting
Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
