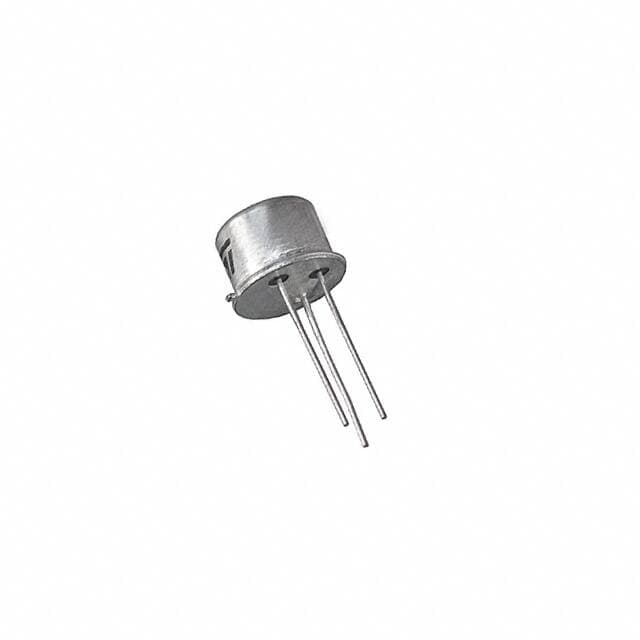

ST BFX34
ST BFX34

ST BFX34

Manufacturer No:

BFX34

Manufacturer:

ST

Package:

TO-205AD, TO-39-3 Metal Can

Description:

NPN 200°C TJ 10?A 1 Elements 3 Terminations SILICON NPN TO-205AD, TO-39-3 Metal Can Tube Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BFX34 information

ST BFX34 technical specifications, attributes, parameters and parts with similar specifications to ST BFX34.

  • Type
  • Parameter
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-205AD, TO-39-3 Metal Can
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 200°C TJ
  • Packaging
  • Tube
  • JESD-609 Code
  • e3
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Subcategory
  • Other Transistors
  • Voltage - Rated DC
  • 120V
  • Max Power Dissipation
  • 870mW
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • WIRE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Reach Compliance Code
  • not_compliant
  • Current Rating
  • 5A
  • Frequency
  • 100MHz
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • BFX34
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Power Dissipation
  • 870mW
  • Case Connection
  • COLLECTOR
  • Transistor Application
  • SWITCHING
  • Gain Bandwidth Product
  • 100MHz
  • Polarity/Channel Type
  • NPN
  • Transistor Type
  • NPN
  • Collector Emitter Voltage (VCEO)
  • 60V
  • Max Collector Current
  • 5A
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 40 @ 2A 2V
  • Current - Collector Cutoff (Max)
  • 10?A
  • Vce Saturation (Max) @ Ib, Ic
  • 1V @ 500mA, 5A
  • Collector Emitter Breakdown Voltage
  • 60V
  • Transition Frequency
  • 100MHz
  • Collector Emitter Saturation Voltage
  • 1V
  • Collector Base Voltage (VCBO)
  • 120V
  • Emitter Base Voltage (VEBO)
  • 6V
  • hFE Min
  • 40
  • VCEsat-Max
  • 1 V
  • Turn On Time-Max (ton)
  • 250ns
  • Height
  • 6.6mm

Download datasheets and manufacturer documentation for ST BFX34.

Datasheets:

BFX34 Overview


This device has a DC current gain of 40 @ 2A 2V, which is the ratio between the base current and the collector current.This design offers maximum flexibility with a collector emitter saturation voltage of 1V.A VCE saturation (Max) of 1V @ 500mA, 5A means Ic has reached its maximum value(saturated).A high level of efficiency can be achieved if the base voltage of the emitter remains at 6V.This device has a current rating of 5A which corresponds to the maximum current it can carry for an indefinite period without deteriorating too much.As you can see, the part has a transition frequency of 100MHz.A maximum collector current of 5A volts is possible.

BFX34 Features


the DC current gain for this device is 40 @ 2A 2V
a collector emitter saturation voltage of 1V
the vce saturation(Max) is 1V @ 500mA, 5A
the emitter base voltage is kept at 6V
the current rating of this device is 5A
a transition frequency of 100MHz


BFX34 Applications


There are a lot of STMicroelectronics
BFX34 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
