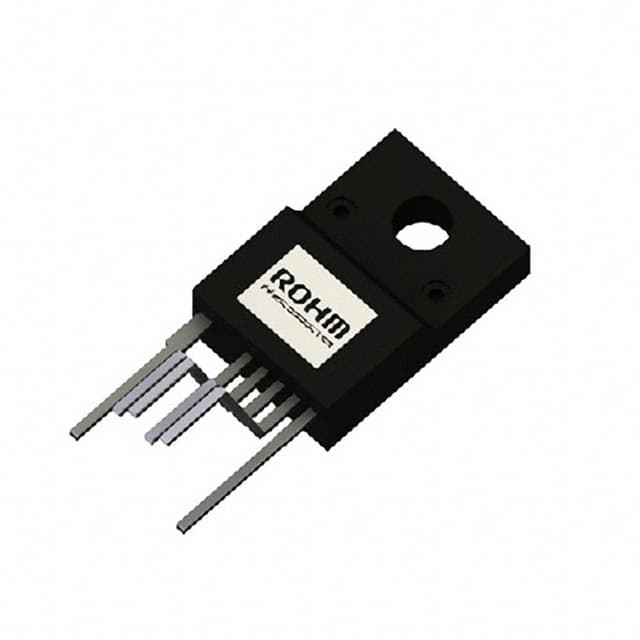

ROHM BM2SCQ124T-LBZ

Manufacturer No:

BM2SCQ124T-LBZ

Manufacturer:

ROHM

Package:

TO-220-6 Full Pack, Formed Leads

Description:

6 Terminations 15V~27.5V AC to DC power converter 30kHz 120kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BM2SCQ124T-LBZ information

ROHM BM2SCQ124T-LBZ technical specifications, attributes, parameters and parts with similar specifications to ROHM BM2SCQ124T-LBZ.

Type
Parameter

Factory Lead Time
17 Weeks

Mounting Type
Through Hole

Package / Case
TO-220-6 Full Pack, Formed Leads

Surface Mount
NO

Operating Temperature
-40°C~105°C

Packaging
Tube

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Power (Watts)
1.5W

Additional Feature
ASLO OPERATES IN RESONANT CONTROL MODE

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-XSFM-T6

Input Voltage-Nom
24V

Analog IC - Other Type
SWITCHING REGULATOR

Voltage - Supply (Vcc/Vdd)
15V~27.5V

Control Features
Soft Start

Input Voltage (Min)
15V

Frequency - Switching
30kHz 120kHz

Input Voltage (Max)
27.5V

Control Technique
PULSE FREQUENCY MODULATION

Fault Protection
Over Current, Over Voltage

Output Isolation
Isolated

Voltage - Breakdown
1700V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BM2SCQ124T-LBZ.

BM2SCQ124T-LBZ Overview

The ac to dc converter is embedded in TO-220-6 Full Pack, Formed Leads package.It is available in Tube AC/DC power converter.This AC/DC converter is mounted in the way of Through Hole .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~105°C .This AC DC converter employs SWITCHING REGULATOR analog IC type.The switching frequency reaches 30kHz 120kHz .It can be used within the range of 15V~27.5V supply voltage (Vcc/Vdd).It has a total of 6 terminations.The input voltage with the maximal value of 27.5V can be ensured on the basis of unique technique.When utilizing this ACDC converter, ASLO OPERATES IN RESONANT CONTROL MODE can also be discovered.

BM2SCQ124T-LBZ Features

Packaged with TO-220-6 Full Pack, Formed Leads
Switching Frequency at 30kHz 120kHz

BM2SCQ124T-LBZ Applications

There are a lot of ROHM Semiconductor
BM2SCQ124T-LBZ AC DC Converters applications.

AC/DC Adaptors/Chargers for Cell Phones
AC/DC Adaptors/Chargers for Cordless Phone
AC/DC Adaptors/Chargers for PDAs
AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
