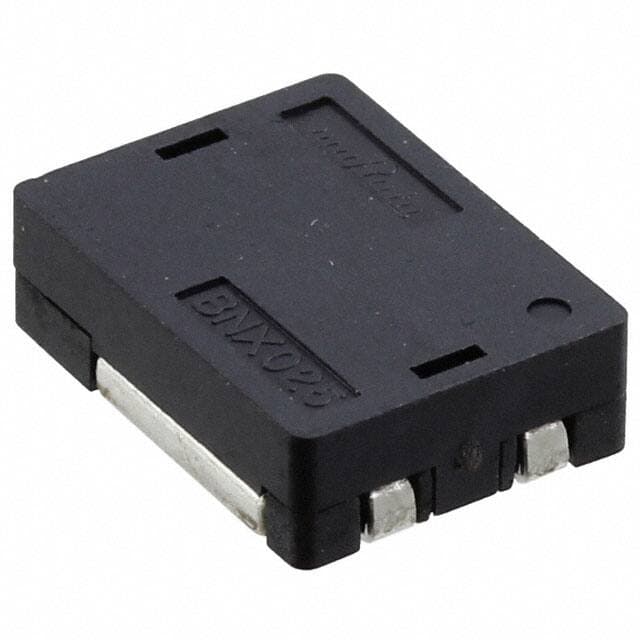

MURATA BNX025H01L

Manufacturer No:

BNX025H01L

Manufacturer:

MURATA

Package:

4-SMD, No Lead

Description:

EMI Filter Circuits 50M OHM 25V 15A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BNX025H01L information

MURATA BNX025H01L technical specifications, attributes, parameters and parts with similar specifications to MURATA BNX025H01L.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
4-SMD, No Lead

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
EMIFIL®, BNX

Size / Dimension
0.476Lx0.358W 12.10mmx9.10mm

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Flat

ECCN Code
EAR99

Type
Low Pass

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Applications
Automotive

HTS Code
8504.50.80.00

Capacitance
10μF

Voltage - Rated DC
25V

Packing Method
TAPE AND REEL

Number of Functions
1

Depth
9.1mm

Current Rating
15A

Number of Channels
2

Max Current Rating
15A

Current
20A

Max Voltage Rating (DC)
25V

Circuit Type
Filter

ESD Protection
No

Attenuation Value
35dB @ 50kHz ~ 1GHz

Output Impedance
50Ohm Ω

Insulation Resistance-Min
50MOhm

Filter Order
5th

Values
C = 10μF

Resistance - Channel (Ω)
0.00043

Height
0.146 3.70mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MURATA BNX025H01L.

Datasheets:

murataelectronics-bnx025h01l-datasheets-2960.pdf

ReachStatement:

murata-gcm2165c1h271ga16j-reachstatement-6228.pdf

Product Description:

The BNX025H01L is a surface-mount, low-pass EMI/RFI filter from Murata Electronics, designed to provide reliable electromagnetic interference and radio frequency interference (EMI/RFI) protection in automotive applications. This filter is part of the EMIFIL? series, known for its high-performance and compact design.

Features:

Attenuation value of 35dB @ 50kHz ~ 1GHz, ensuring effective EMI/RFI suppression
Capacitance of 10μF, providing a stable and reliable filtering performance
Current rating of 15A, suitable for high-current applications
Operating temperature range of -55°C to 125°C, ensuring reliable performance in harsh environments
Surface-mount package with a compact size of 0.476L x 0.358W x 9.10mm, making it ideal for space-constrained applications
Tin/silver/copper (Sn/Ag/Cu) termination, providing excellent electrical and thermal conductivity

Applications:

Automotive: The BNX025H01L is designed for use in automotive applications, providing EMI/RFI protection for electronic systems such as infotainment, navigation, and telematics.
Industrial: This filter can also be used in industrial applications, such as factory automation, medical devices, and test and measurement equipment.

Alternative Parts:

BNX025H01L is a part of the EMIFIL? series, which includes other filters with similar specifications. Alternative parts may include:
- BNX025H01K: A filter with similar specifications, but with a different package type.
- BNX025H01M: A filter with a higher attenuation value, but with a similar package type.

Embedded Modules:

The BNX025H01L is used in various embedded modules, including:
- Automotive infotainment systems
- Navigation systems
- Telematics systems

FAQs:

Q: What is the maximum current rating of the BNX025H01L? A: The maximum current rating is 15A.

Q: What is the operating temperature range of the BNX025H01L? A: The operating temperature range is -55°C to 125°C.

Q: Is the BNX025H01L RoHS compliant? A: Yes, the BNX025H01L is RoHS3 compliant.

Q: What is the package type of the BNX025H01L? A: The package type is 4-SMD, no lead, with a surface-mount package.

Q: What is the termination type of the BNX025H01L? A: The termination type is tin/silver/copper (Sn/Ag/Cu).
