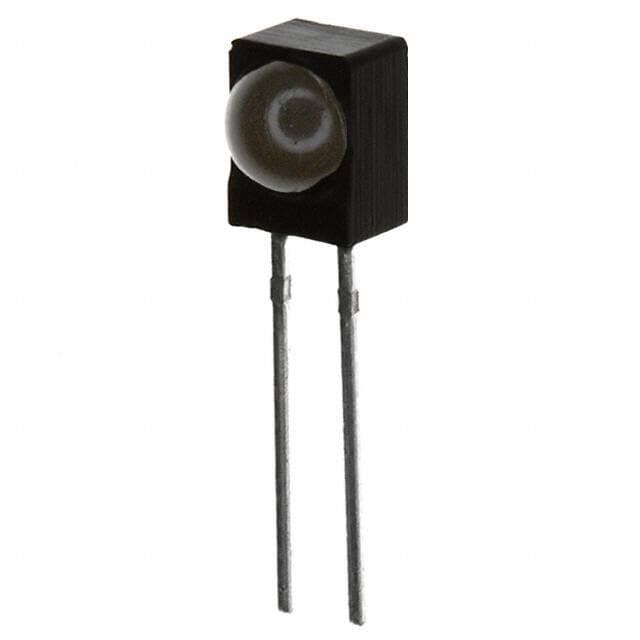

VISHAY BPV22NF
VISHAY BPV22NF

VISHAY BPV22NF

Manufacturer No:

BPV22NF

Manufacturer:

VISHAY

Package:

Radial, Side View

Description:

Through Hole -40°C~100°C Bulk Wavelength: 940nm Radial, Side View 60V 7.5mm2 2nA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BPV22NF information

VISHAY BPV22NF technical specifications, attributes, parameters and parts with similar specifications to VISHAY BPV22NF.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Side View
  • Number of Pins
  • 2
  • Operating Temperature
  • -40°C~100°C
  • Packaging
  • Bulk
  • Published
  • 2005
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 100°C
  • Min Operating Temperature
  • -40°C
  • Capacitance
  • 70pF
  • Max Power Dissipation
  • 215mW
  • Current Rating
  • 50A
  • Lead Length
  • 26.5mm
  • Diode Type
  • PIN
  • Power Dissipation
  • 215mW
  • Viewing Angle
  • 120°
  • Forward Current
  • 50mA
  • Voltage - DC Reverse (Vr) (Max)
  • 60V
  • Breakdown Voltage
  • 60V
  • Rise Time
  • 100ns
  • Forward Voltage
  • 1.3V
  • Max Reverse Voltage (DC)
  • 60V
  • Reverse Breakdown Voltage
  • 60V
  • Wavelength
  • 940nm
  • Peak Wavelength
  • 940 nm
  • Reverse Voltage (DC)
  • 60V
  • Dark Current
  • 2nA
  • Spectral Range
  • 790nm ~ 1050nm
  • Active Area
  • 7.5mm2
  • Current - Dark (Typ)
  • 2nA
  • Height
  • 6mm
  • Length
  • 4.5mm
  • Width
  • 5mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for VISHAY BPV22NF.

Datasheets:

RohsStatement:

BPV22NF Overview


In order to prevent damage, these photodiodes are packaged in the Bulk. It is necessary to enclose the photodiodes in Radial, Side View packages for safety purposes. As long as the photodiodes are operated in reverse- bias mode continuously, their maximum voltage is 60V. It is important that the reverse-bias voltage of the photodiodes do not exceed 60V continuously. There are 2 pins on the photodiodes. A circuit containing photodiodes can release 215mW heat. A photodiode should not operate at a temperature higher than 100°C. For photodiodes, the minimum operating temperature should be -40°C. It should be 60V for the reverse anode voltage of the photodiodes. For a circuit, the maximum heat released by the photodiodes should be 215mW. DC photodiodes can work properly under reverse voltages of 60V in the DC circuit. In order to get current to flow across a photodiode, there must be a voltage of 1.3V. For photodiodes to work, the breakdown voltage should be 60V. A photodiode conducts 2nA current without light input.

BPV22NF Features


Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: PCB, Through Hole
Spectral Range: 790nm ~ 1050nm
Viewing Angle: 120°


BPV22NF Applications


There are a lot of Vishay Semiconductor Opto Division
BPV22NF Photodiodes applications.


  • Industrial Automation
  • Machine Controls
  • Light Barriers
  • Vision Controls
  • Measurement Levelling
  • High speed photo detectors
  • Health Monitoring
  • Heart Rate Monitoring
  • Pulse Oximetry
  • Pure UV-C Monitoring
