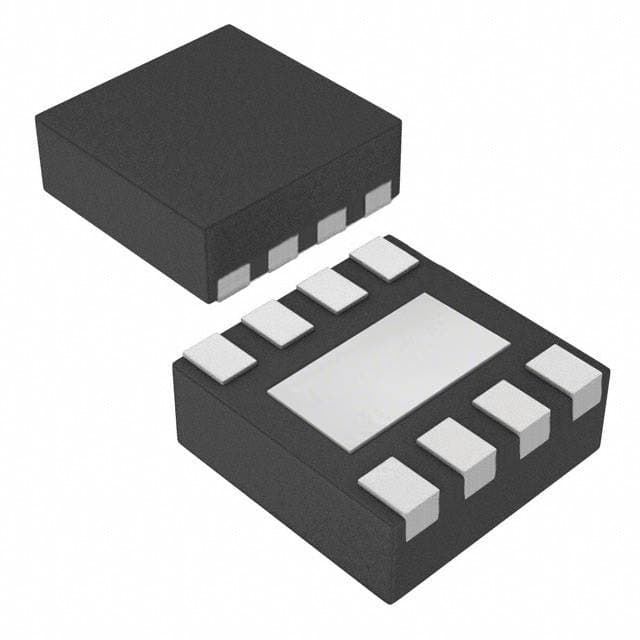

TI BQ24314DSGRG4

Manufacturer No:

BQ24314DSGRG4

Manufacturer:

Package:

HVSON, SOLCC8,.08,20

Description:

Charger front end protection IC with 30V max vin and 5.85V OVP 8-WSON -40 to 85

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BQ24314DSGRG4 information

TI BQ24314DSGRG4 technical specifications, attributes, parameters and parts with similar specifications to TI BQ24314DSGRG4.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
TEXAS INSTRUMENTS INC

Part Package Code
SON

Package Description
HVSON, SOLCC8,.08,20

Pin Count
8

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Additional Feature
RESET THRESHOLD VOLTAGE IS 5.85V

Adjustable Threshold
YES

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

JESD-30 Code
S-PDSO-N8

JESD-609 Code
e4

Length
2 mm

Moisture Sensitivity Level
2

Number of Channels
1

Number of Functions
1

Number of Terminals
8

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
HVSON

Package Equivalence Code
SOLCC8,.08,20

Package Style
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

Peak Reflow Temperature (Cel)
260

Qualification Status
Not Qualified

Seated Height-Max
0.8 mm

Supply Current-Max (Isup)
0.6 mA

Supply Voltage-Max (Vsup)
26 V

Supply Voltage-Min (Vsup)
3.3 V

Supply Voltage-Nom (Vsup)
5 V

Surface Mount
YES

Temperature Grade
INDUSTRIAL

Terminal Finish
NICKEL PALLADIUM GOLD

Terminal Form
NO LEAD

Terminal Pitch
0.5 mm

Terminal Position
DUAL

Threshold Voltage-Nom
+5.85V

Time@Peak Reflow Temperature-Max (s)
30

Width
2 mm

Download datasheets and manufacturer documentation for TI BQ24314DSGRG4.

Datasheets:

slus763d.pdf

BQ24314DSGRG4 Overview

The analog IC in this power management IC is POWER SUPPLY SUPPORT CIRCUIT. As of right 1w, there are 1 channels available. The total number of pins is 8. It comes in a case with a Tape & Reel (TR). Voltage must not drop below 3.3V volts to operate this electrical part. The electronic component belongs to the Power Management Circuits family. Supply voltage shouldn't exceed 26V volts for this power IC. This smart tools battery cannot be activated with a value less than -40°C. Using it below 125°C temperatures is recommended. 3/24V volts power it. Ensure that this battery management IC is always set to 5V. On it, there are 8 pins. There must be 0.6mA more than 0.6mA current available from the supply (Isup). The voltage it outputs is 4.35V.

BQ24314DSGRG4 Features

with 8 Pins
operate supply voltage at the range of 5V

BQ24314DSGRG4 Applications

There are a lot of Texas Instruments
BQ24314DSGRG4 Battery Management ICs applications.

Non-road type vehicles
Golf carts
Electric-powered machinery
Fork lifts
Grid power infrastructure
Cell phone towers
A/C power substations
Internet infrastructure equipment
Aviation ground support systems
Tower communications
