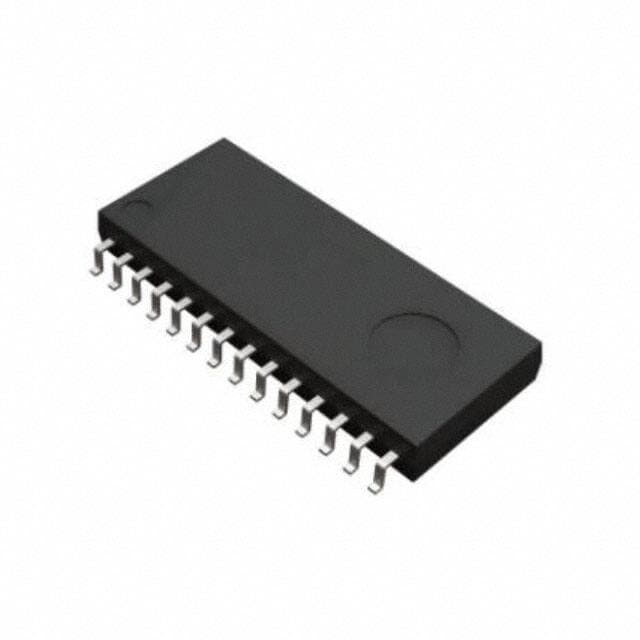

ROHM BS2130F-GE2

Manufacturer No:

BS2130F-GE2

Manufacturer:

ROHM

Package:

28-SOIC (0.295, 7.50mm Width)

Description:

Cut Tape (CT) 28-SOIC (0.295, 7.50mm Width) Logic 11.5V~20V Surface Mount -40°C~125°C TA General Purpose Half Bridge (3) Inductive, Capacitive 600V Max

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BS2130F-GE2 information

ROHM BS2130F-GE2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BS2130F-GE2.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Surface Mount

Package / Case
28-SOIC (0.295, 7.50mm Width)

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Cut Tape (CT)

Feature
Bootstrap Circuit

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Applications
General Purpose

Additional Feature
SEATED HT-CALCULATED

HTS Code
8542.39.00.01

Technology
Power MOSFET, IGBT

Voltage - Supply
11.5V~20V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G28

Output Configuration
Half Bridge (3)

Voltage - Load
600V Max

Current - Output / Channel
350mA

Fault Protection
Current Limiting, UVLO

Turn On Time
0.78 µs

High Side Driver
YES

Turn Off Time
0.73 µs

Load Type
Inductive, Capacitive

Length
18.5mm

Height Seated (Max)
2.41mm

Width
7.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BS2130F-GE2.

Datasheets:

rohmsemiconductor-bs2130fge2-datasheets-8121.pdf

BS2130F-GE2 Overview

In this package, Cut Tape (CT) is used.In order to save costs, H bridge is included in the 28-SOIC (0.295, 7.50mm Width) package.Bridge driver is possible to ensure improved reliabilbridge drivery by varying the supply voltage of 11.5V~20V.H bridge circuit is mounted in the way of Surface Mount.Motor driver H bridge works normally at -40°C~125°C TA's operating temperature.General Purpose is pretty useful in a variety of applications.Among full bridges specific characteristics is Bootstrap Circuit.Transmission lines are terminated with 28 terminations with the H bridge that matches their characteristic impedance.There is a voltage supply of 15V that is used to operate H bridge circuit.Additionally, SEATED HT-CALCULATED can be provided.

BS2130F-GE2 Features

Available in 28-SOIC (0.295, 7.50mm Width) Package / Case
Operating Temperature at the range of Surface Mount
With SEATED HT-CALCULATED Drivers

BS2130F-GE2 Applications

There are a lot of ROHM Semiconductor
BS2130F-GE2 Full Bridge Drivers, Half-Bridge Drivers applications.

High-Performance Gaming Motherboards
Compact Blade Servers
DC-DC Converters
Desktop Computers
V-Core
Non-V-Core
Workstations
High-Current DC-DC Point-of-Load Converters
Networking Microprocessor Voltage Regulators
Telecom Microprocessor
