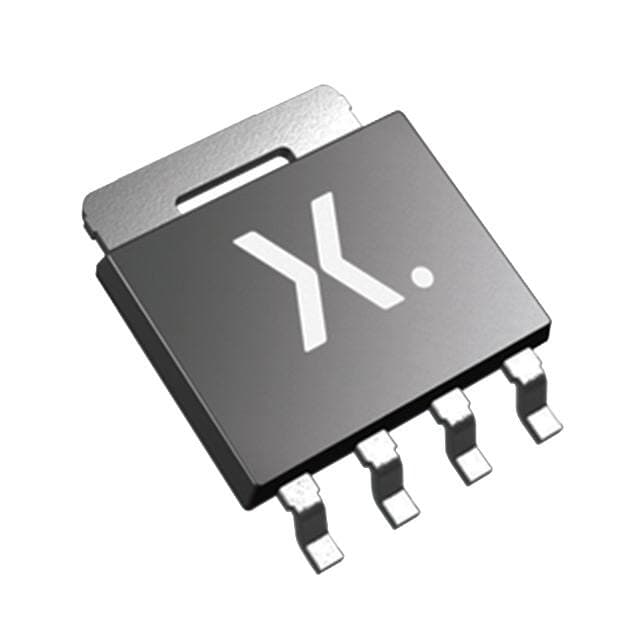

NEXPERIA BUK7Y12-100EX

Manufacturer No:

BUK7Y12-100EX

Manufacturer:

NEXPERIA

Package:

SC-100, SOT-669

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 12m ? @ 25A, 10V ±20V 5067pF @ 25V 68nC @ 10V SC-100, SOT-669

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BUK7Y12-100EX information

NEXPERIA BUK7Y12-100EX technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA BUK7Y12-100EX.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
SC-100, SOT-669

Surface Mount
YES

Number of Pins
4

Transistor Element Material
SILICON

Operating Temperature
-55°C~175°C TJ

Packaging
Tape & Reel (TR)

Series
TrenchMOS?

Published
2013

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

Terminal Finish
Tin (Sn)

Additional Feature
AVALANCHE RATED

Technology
MOSFET (Metal Oxide)

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
4

Number of Elements
1

Number of Channels
1

Power Dissipation-Max
238W Tc

Operating Mode
ENHANCEMENT MODE

Power Dissipation
238W

Case Connection
DRAIN

Turn On Delay Time
12 ns

FET Type
N-Channel

Transistor Application
SWITCHING

Rds On (Max) @ Id, Vgs
12m ? @ 25A, 10V

Vgs(th) (Max) @ Id
4V @ 1mA

Input Capacitance (Ciss) (Max) @ Vds
5067pF @ 25V

Current - Continuous Drain (Id) @ 25°C
85A Tc

Gate Charge (Qg) (Max) @ Vgs
68nC @ 10V

Rise Time
18ns

Drive Voltage (Max Rds On,Min Rds On)
10V

Vgs (Max)
±20V

Fall Time (Typ)
66 ns

Turn-Off Delay Time
66 ns

Continuous Drain Current (ID)
85A

JEDEC-95 Code
MO-235

Gate to Source Voltage (Vgs)
20V

Max Dual Supply Voltage
100V

Drain to Source Breakdown Voltage
100V

Download datasheets and manufacturer documentation for NEXPERIA BUK7Y12-100EX.

BUK7Y12-100EX Overview

As an op amp's input capacitance parameter, CI, is defined as the capacitance between the input terminals when one input is grounded, this device's maximum input capacitance is 5067pF @ 25V.This device conducts a continuous drain current (ID) of 85A, which is the maximum continuous current transistor can conduct.Using VGS=100V and a specified value of ID, the drain-source breakdown voltage is VDS at which a specified value of ID flows. This device has a drain-source breakdown voltage of 100V (that is, no charge flow from drain to source).When the device is turned off, a turn-off delay time of 66 ns occurs as the input capacitance charges before drain current conduction commences.Pulsed drain current is maximum rated peak drain current 339A.Before drain current conduction can begin, the device's turning-on delay time takes time to charge its input capacitance. This delay time is 12 ns.Voltage at the gate-source terminal of a FET transistor, called the gate-source voltage, or VGS, can be 20V.With 100V power, it supports a dual voltage supply of up to maximum.In order to reduce power consumption, this device uses a drive voltage of 10V volts (10V).

BUK7Y12-100EX Features

a continuous drain current (ID) of 85A
a drain-to-source breakdown voltage of 100V voltage
the turn-off delay time is 66 ns
based on its rated peak drain current 339A.

BUK7Y12-100EX Applications

There are a lot of Nexperia USA Inc.
BUK7Y12-100EX applications of single MOSFETs transistors.

Motor drives and Uninterruptible Power Supplies
Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
PFC stages, hard switching PWM stages and resonant switching
