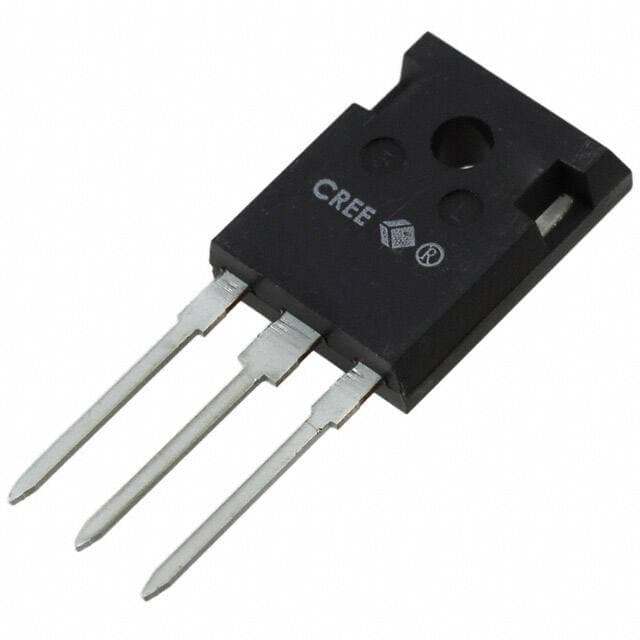

CREE C4D30120D

Manufacturer No:

C4D30120D

Manufacturer:

CREE

Package:

TO-247-3

Description:

Silicon Carbide Schottky Rectifier Diode 1 Pair Common Cathode No Recovery Time > 500mA (Io) -55°C~175°C 21.5A 1.2kV-DC TO-247-3 Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

C4D30120D information

CREE C4D30120D technical specifications, attributes, parameters and parts with similar specifications to CREE C4D30120D.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-247-3

Number of Pins
3

Packaging
Tube

Series
Z-Rec®

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
175°C

Min Operating Temperature
-55°C

Capacitance
1.2nF

Max Power Dissipation
220W

Element Configuration
Common Cathode

Speed
No Recovery Time > 500mA (Io)

Diode Type
Silicon Carbide Schottky

Current - Reverse Leakage @ Vr
200?A @ 1200V

Voltage - Forward (Vf) (Max) @ If
1.8V @ 15A

Forward Current
15A

Max Reverse Leakage Current
200?A

Operating Temperature - Junction
-55°C~175°C

Max Surge Current
130A

Voltage - DC Reverse (Vr) (Max)
1200V

Max Reverse Voltage (DC)
1.2kV

Average Rectified Current
21.5A

Reverse Recovery Time
0ns

Peak Reverse Current
200?A

Max Repetitive Reverse Voltage (Vrrm)
1.2kV

Peak Non-Repetitive Surge Current
130A

Reverse Voltage
1.2kV

Diode Configuration
1 Pair Common Cathode

Max Forward Surge Current (Ifsm)
100A

Max Junction Temperature (Tj)
175°C

Height
25.2mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for CREE C4D30120D.

C4D30120D Overview

When the forward voltage is set to 3V, this device will operate.Monarrayoring the surge current and preventing array from exceeding 130A should be the rule.When the forward voltage is set to 15A, this device will operate.Approximately 1.2nF farads of capacitance are found in this device.Devices like this one are powered with a reverse voltage peak of 200?A.Its maximal reverse leakage current is 200?A, which is the current from that semiconductor device when the device is reverse biased.This electronic or electrical device produces the maximum amount of 220W heat (energy loss or waste).

C4D30120D Features

3V forward voltage
1.2nF farads
a peak voltage of 200?A
a reverse voltage peak of 200?A

C4D30120D Applications

There are a lot of Cree/Wolfspeed
C4D30120D applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
