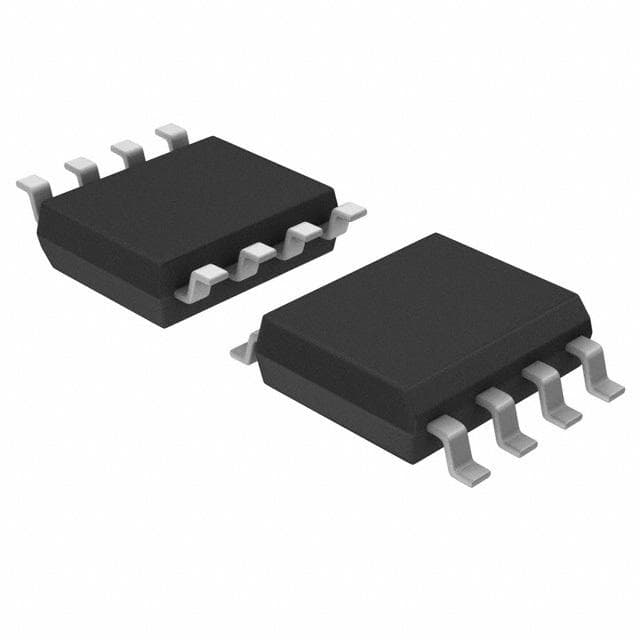

Renesas CA3130M

Manufacturer No:

CA3130M

Manufacturer:

Renesas

Package:

SOIC

Description:

45mA per Channel 5pA 80 dB Instrumentational OP Amps 0.00005μA 8 Pins SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CA3130M information

Renesas CA3130M technical specifications, attributes, parameters and parts with similar specifications to Renesas CA3130M.

Type
Parameter

Contact Plating
Lead, Tin

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Published
1998

JESD-609 Code
e0

Part Status
Discontinued

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Subcategory
Operational Amplifier

Technology
BIMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
7.5V

Pin Count
8

Qualification Status
Not Qualified

Temperature Grade
MILITARY

Number of Circuits
1

Max Supply Voltage
16V

Min Supply Voltage
5V

Slew Rate
30 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
80 dB

Current - Input Bias
5pA

Output Current per Channel
45mA

Input Offset Voltage (Vos)
8mV

Gain Bandwidth Product
15MHz

Neg Supply Voltage-Nom (Vsup)
-7.5V

Unity Gain BW-Nom
15000 kHz

Voltage Gain
100dB

Average Bias Current-Max (IIB)
0.00005μA

Low-Offset
NO

Frequency Compensation
NO

Max Dual Supply Voltage
8V

Low-Bias
YES

Min Dual Supply Voltage
2.5V

Bias Current-Max (IIB) @25C
0.00005μA

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas CA3130M.

CA3130M Overview

There is a SOIC case in which the instrumentation amplifier is packaged. Buffer amps of this type are called OPERATIONAL AMPLIFIER-types. The number of terminations is approaching the 8 mark. The total number of pins on linear amplifier is 8. The linear amplifier should be run at 7.5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 8mV. It is possible to operate this buffer amplifier from a supply current of 10mA . 100dB should be the voltage gain. A linear amplifier like this has 1 circuits on it. In order for this buffer op amp to function, it should have a temperature of at least -55°C degrees Celsius. At temperatures greater than 125°C, Instrumentation amplifier should not be used. The electrical part is capable of being powered by a voltage of under 16V, which means that it can be used with any voltage supply. As a rule of thumb, the supply voltage of the op amp should not be lower than 5V. As a general rule, you should conduct this electronic component under dual supply voltages of 8V volts.

CA3130M Features

8 Pins
supply voltage of 7.5V
100dB voltage gain

CA3130M Applications

There are a lot of Intersil (Renesas Electronics America)
CA3130M Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
