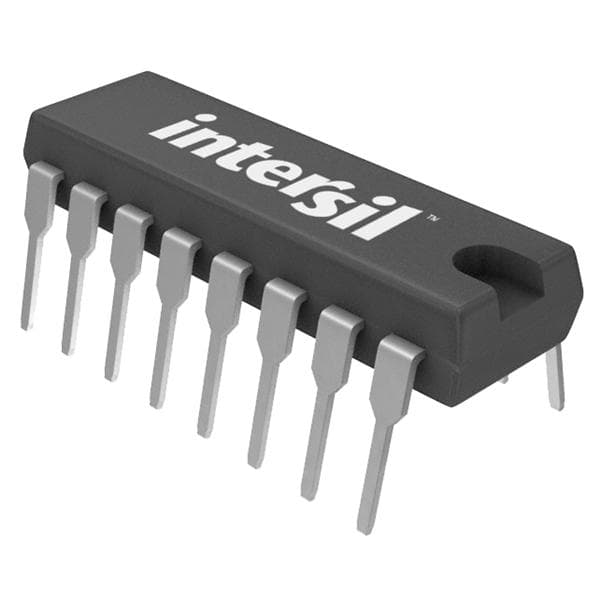

Renesas CA3162E

Manufacturer No:

CA3162E

Manufacturer:

Renesas

Package:

PDIP

Description:

4 Bit 2.54mm ADC 5V PDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CA3162E information

Renesas CA3162E technical specifications, attributes, parameters and parts with similar specifications to Renesas CA3162E.

Type
Parameter

Mount
Through Hole

Package / Case
PDIP

Number of Pins
16

Published
1992

JESD-609 Code
e0

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
75°C

Min Operating Temperature
0°C

Subcategory
Analog to Digital Converters

Technology
BIPOLAR

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
2.54mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Number of Elements
1

Polarity
Unipolar

Temperature Grade
COMMERCIAL

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Number of Bits
4

Converter Type
ADC, DUAL-SLOPE

Sampling Rate
96 sps

Number of Analog In Channels
1

Output Bit Code
BINARY CODED DECIMAL

Analog Input Voltage-Max
0.2V

Output Format
PARALLEL, 4 BITS

Analog Input Voltage-Min
-0.2V

Conversion Time-Max
250000?s

Height Seated (Max)
5.33mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas CA3162E.

Datasheets:

intersil-ca3162e-datasheets-5964.pdf

CA3162E Overview

The analogue to digital converter is designed with 4 Bits.The AD converter is embedded in the PDIP package.The ADC converter is equipped with 1 Functions .There are 16 terminations in this electrical AD converter, which are the practice of ending a transmission line with a device that matches the characteristic impedance of the line.The analogue to digital converter is powered from a supply voltage of 5V.The A/D converter has 1 channels.The is equipped with 16 pin count.The peak reflow temperature (Cel) amounts to NOT SPECIFIED to be essentially indestructible.There are ADC, DUAL-SLOPE converters based on the source input voltage and the output voltage.There are 16 pins, which are pronged contacts as part of a signal interface in a computer or other communications device. This analogue to digital converter is included in Analog to Digital Converters.Through Hole can be used to mount the analogue to digital converter.The ADC converter operates with the maximal supply voltage of 5.5V.It operates with the minimal supply voltage of 4.5V.The output formats of this electrical AD converter are PARALLEL, 4 BITS , which are used to determine which data is exported and how data is displayed in many areas of OLIB.This electrical digital converter operates from a supply voltage of 5V.The maximal analog input voltage of this electrical AD converter is 0.2V.The ADC converter operates from 5V power supplies.It operates with the maximal operating temperature of 75°C to ensure its reliability.It operates with the minimal operating temperature of 0°C to ensure its reliability.The minimal analog input voltage of this electrical AD converter is -0.2V.The ADC converter consists of 1 elements.

CA3162E Features

1 Functions
16 basic kinds of terminations
16 pin count
Minimal supply voltage of 4.5V
5V power supplies
1 elements

CA3162E Applications

There are a lot of Intersil (Renesas Electronics America)
CA3162E ADC applications.

Cell Phones
Digital Multimeters, PLC's (Programming Logic Controllers)
RADAR processing, digital oscilloscopes
CMOS Image sensors for mobile applications
Medical Instrumentation and medical imaging
Music recording
Digital signal processing
Scientific instruments
Rotary encoder
Displaying
