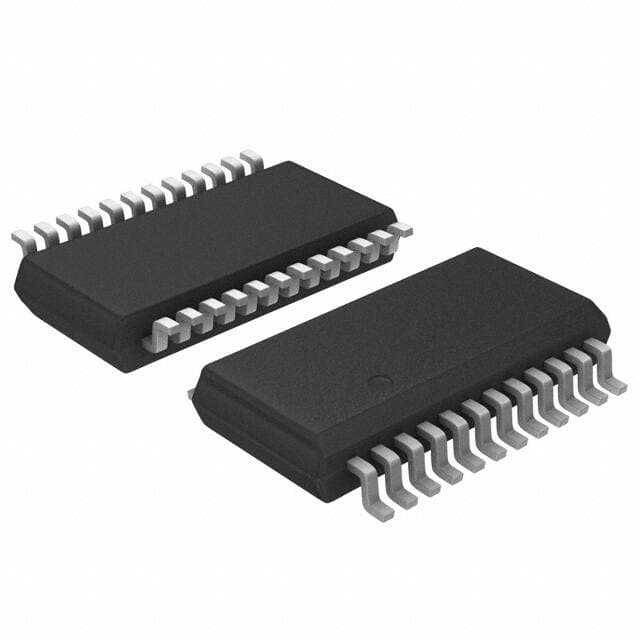

ONSEMI CAT4016VS-T2

Manufacturer No:

CAT4016VS-T2

Manufacturer:

ONSEMI

Package:

24-SSOP (0.154, 3.90mm Width)

Description:

3.3/5V 0.635mm Tin PMIC CAT4016 24 Pin 5V 24-SSOP (0.154, 3.90mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CAT4016VS-T2 information

ONSEMI CAT4016VS-T2 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI CAT4016VS-T2.

Type
Parameter

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-SSOP (0.154, 3.90mm Width)

Number of Pins
24

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Type
Linear

Applications
Signage

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.635mm

Base Part Number
CAT4016

Pin Count
24

Number of Outputs
16

Qualification Status
Not Qualified

Power Supplies
3.3/5V

Max Supply Voltage
5.5V

Min Supply Voltage
3V

Output Current
44mA

Max Supply Current
10mA

Topology
Shift Register

Min Input Voltage
3V

Max Input Voltage
5.5V

Halogen Free
Halogen Free

Current - Output / Channel
80mA

Internal Switch(s)
Yes

High Level Output Current
150mA

Dimming
PWM

Number of Segments
16

Switching Frequency
25MHz

Multiplexed Display Capability
NO

Length
8.65mm

Height Seated (Max)
1.73mm

Width
3.895mm

Download datasheets and manufacturer documentation for ONSEMI CAT4016VS-T2.

Datasheets:

onsemiconductor-cat4016yt2-datasheets-3590.pdf

CAT4016VS-T2 Overview

Its 24-SSOP (0.154, 3.90mm Width) package is used to save board space. There are 16 outputs used for the design of this LED drivers.It adopts the way of Surface Mount for mounting.It emergys as a Linear with high efficiency and reliable performance.It is able to work normally at the operating temperature of -40°C~85°C TA.It provides considerable benefits for Signage.24 terminations are designed for its operation.There are 24 pins used to form the base of its configuration.There are 16 segments.It is mounted in the way of Surface Mount.This LED driver can be found under the base part number CAT4016.The supply voltage of 5.5V is an acceptable maximum value.It is equipped with 24 pin count.It is also classified into Display Drivers according to its characteristics.It operates with the minimal input voltage of 3V.It works with the minimal supply voltage of 3V to meet highest efficiency standards.The allowable maximum value of supply current reaches 5.5V.This device is able to provide high efficiency when the maximal supply current should be less than 10mA.The current that can be supplied to the load is 44mA.When the switching frequency is maintained at 25MHz, this electronic component is able to fully play its functions.

CAT4016VS-T2 Features

Available in the 24-SSOP (0.154, 3.90mm Width) package
Operating temperature of -40°C~85°C TA
Supply voltage of 5V
Switching frequency of 25MHz

CAT4016VS-T2 Applications

There are a lot of ON Semiconductor
CAT4016VS-T2 LED Driver ICs applications.

General lighting
Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
