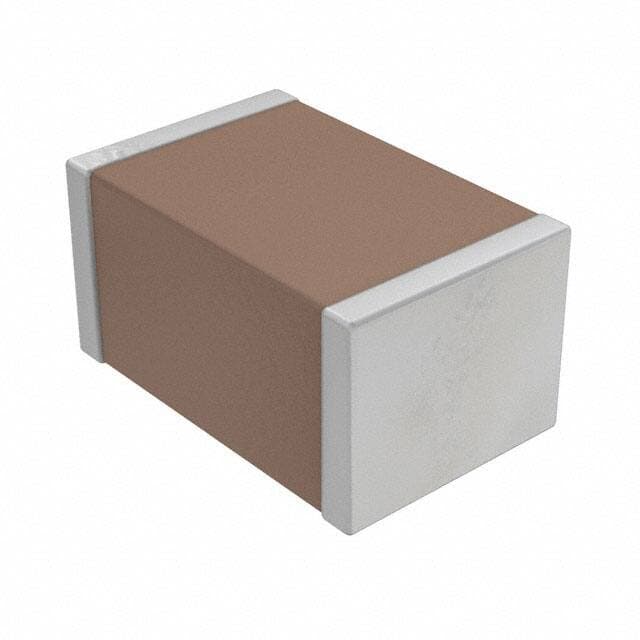

TDK CGA5L3X7R1H475K160AB

Manufacturer No:

CGA5L3X7R1H475K160AB

Manufacturer:

TDK

Package:

CHIP

Description:

Description: Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 4.7uF, 1206

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CGA5L3X7R1H475K160AB information

TDK CGA5L3X7R1H475K160AB technical specifications, attributes, parameters and parts with similar specifications to TDK CGA5L3X7R1H475K160AB.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
TDK CORP

Package Description
CHIP

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8532.24.00.20

Factory Lead Time
24 Weeks

Samacsys Manufacturer
TDK

Capacitance
4.7 µF

Capacitor Type
CERAMIC CAPACITOR

Dielectric Material
CERAMIC

Height
1.6 mm

JESD-609 Code
e3

Length
3.2 mm

Mounting Feature
SURFACE MOUNT

Multilayer
Yes

Negative Tolerance
10%

Number of Terminals
2

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Package Shape
RECTANGULAR PACKAGE

Package Style
SMT

Positive Tolerance
10%

Rated (DC) Voltage (URdc)
50 V

Reference Standard
AEC-Q200

Size Code
1206

Surface Mount
YES

Temperature Characteristics Code
X7R

Temperature Coefficient
15% ppm/°C

Terminal Finish
MATTE TIN OVER NICKEL

Terminal Shape
WRAPAROUND

Width
1.6 mm

Download datasheets and manufacturer documentation for TDK CGA5L3X7R1H475K160AB.

Datasheets:

TDKC-S-A0014870531-1.pdf

Product Description:

The CGA5L3X7R1H475K160AB is a surface-mount ceramic capacitor manufactured by TDK Corporation. This component is part of the CGA series, which is designed to meet the demanding requirements of automotive applications. With a capacitance of 4.7μF, this capacitor is ideal for applications where high-frequency filtering and decoupling are required.

Features:

Lead-free construction ensures compliance with environmental regulations
X7R dielectric material provides a high level of reliability and stability
Surface-mount package with a compact 1206 (3216 Metric) case code
Operating temperature range of -55°C to 125°C, making it suitable for harsh environments
AEC-Q200 ratings ensure compliance with automotive industry standards
ROHS3 compliant, meeting the latest environmental regulations

Applications:

Automotive applications, including engine control units, powertrain systems, and infotainment systems
Industrial applications, such as industrial automation, robotics, and medical devices
Consumer electronics, including smartphones, tablets, and laptops

Alternative Parts:

CGA5L3X7R1H475K160AB is a lead-free version of the CGA5L3X7R1H475K160A, which is a non-lead-free version.
Other capacitors in the CGA series, such as CGA5L3X7R1H475K160AA, which has a different tolerance range.

Embedded Modules:

This capacitor is commonly used in various embedded modules, including:
- TDK's own modules, such as the TDK-Lambda power modules
- Other manufacturers' modules, such as those from Infineon, STMicroelectronics, and NXP

Overall, the CGA5L3X7R1H475K160AB is a reliable and high-performance ceramic capacitor designed for automotive and industrial applications. Its lead-free construction, high operating temperature range, and AEC-Q200 ratings make it an excellent choice for demanding environments.
