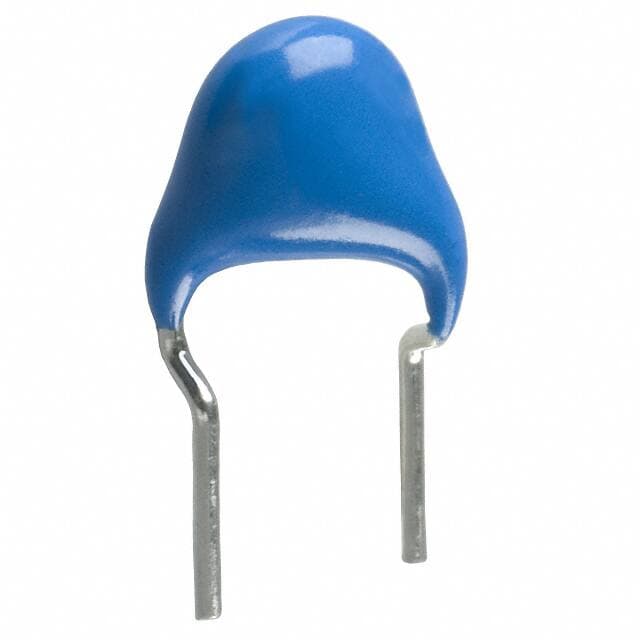

TDK CK45-B3AD102KYVNA
Manufacturer No:
CK45-B3AD102KYVNA
Manufacturer:
Package:
Radial, Disc
Description:
CK45 1000pF Ceramic Capacitor ±10% B 0.236Dia 6.00mm -25°C~105°C Through Hole Radial, Disc
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CK45-B3AD102KYVNA information
TDK CK45-B3AD102KYVNA technical specifications, attributes, parameters and parts with similar specifications to TDK CK45-B3AD102KYVNA.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Contact Plating
- Tin
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Disc
- Voltage Rated
- 1000V 1kV
- Operating Temperature
- -25°C~105°C
- Packaging
- Tape & Box (TB)
- Series
- CK45
- Published
- 2013
- Size / Dimension
- 0.236Dia 6.00mm
- Tolerance
- ±10%
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Temperature Coefficient
- B
- Max Operating Temperature
- 105°C
- Min Operating Temperature
- -25°C
- Applications
- General Purpose
- Capacitance
- 1000pF
- Lead Pitch
- 5.0038mm
- Lead Spacing
- 0.197 5.00mm
- Lead Style
- Formed Leads - Kinked
- Lead/Base Style
- Straight
- Features
- High Voltage
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for TDK CK45-B3AD102KYVNA.
Product Description:
The TDK Corporation's CK45-B3AD102KYVNA is a high-voltage ceramic capacitor designed for general-purpose applications. This radial, disc-shaped capacitor features a capacitance of 1000pF, making it suitable for a wide range of applications where high-frequency filtering and decoupling are required.
Features:
- High voltage rating of 1000V (1kV) for reliable operation in demanding environments
- Formed leads with a kinked design for improved mechanical strength and reduced stress
- Straight lead/base style for easy mounting and connection
- High moisture sensitivity level (MSL 1) for unlimited storage and handling
- Operating temperature range of -25°C to 105°C for flexibility in various applications
- RoHS3 compliant for environmental sustainability
Applications:
- Primary applications: General-purpose filtering, decoupling, and power supply filtering in electronic devices such as computers, smartphones, and televisions
- Secondary applications: Audio and radio frequency (RF) filtering, medical equipment, and industrial control systems
Alternative Parts:
- CK45-B3AD102KYVNA is part of the CK45 series, which offers a range of ceramic capacitors with varying capacitance values and voltage ratings. Alternative parts within this series include:
- CK45-B3AD102KYVNA (1000pF, 1000V)
- CK45-B3AD102KYVNA (2200pF, 1000V)
- CK45-B3AD102KYVNA (4700pF, 1000V)
Embedded Modules:
- This capacitor is commonly used in various embedded modules, including:
- Power supply modules
- Audio and RF filtering modules
- Medical device modules
- Industrial control modules
FAQs:
Q: What is the operating temperature range of this capacitor? A: The operating temperature range is -25°C to 105°C.
Q: What is the moisture sensitivity level of this capacitor? A: The moisture sensitivity level is MSL 1, indicating unlimited storage and handling.
Q: Is this capacitor RoHS compliant? A: Yes, the CK45-B3AD102KYVNA is RoHS3 compliant.
Q: What is the packaging type of this capacitor? A: The packaging type is Tape & Box (TB).
Q: What is the lead pitch and spacing of this capacitor? A: The lead pitch is 5.0038mm, and the lead spacing is 0.197mm (5.00mm).
Q: What is the maximum operating temperature of this capacitor? A: The maximum operating temperature is 105°C.
Q: What is the minimum operating temperature of this capacitor? A: The minimum operating temperature is -25°C.
Q: What is the capacitance value of this capacitor? A: The capacitance value is 1000pF.
Q: What is the voltage rating of this capacitor? A: The voltage rating is 1000V (1kV).
