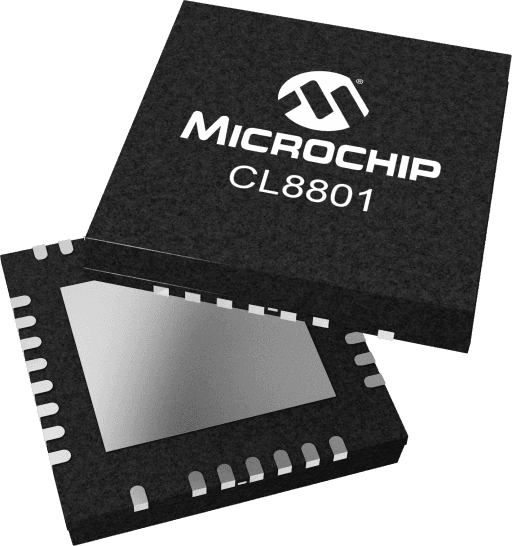

Microchip CL8801K63-G

Manufacturer No:

CL8801K63-G

Manufacturer:

Microchip

Package:

33-VFQFN Exposed Pad

Description:

SEQUENTIAL LINEAR LED DRIVER

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CL8801K63-G information

Microchip CL8801K63-G technical specifications, attributes, parameters and parts with similar specifications to Microchip CL8801K63-G.

Type
Parameter

Input Voltage Min (V)
90

Input Voltage Max (V)
275

V OUT Min (VDC)
70

V OUT Max (VDC)
350

Output Current (peak mA)
200

Dimming
External

Parallelable
Yes

Package
QFN-33

Features
4-Stage

Download datasheets and manufacturer documentation for Microchip CL8801K63-G.

Data Sheets:

61a0307c623374fe0986d54800127fec.pdf

The CL8801 is designed to drive a long string of inexpensive, low current LEDs directly from the AC mains. A basic driver circuit consists of the CL8801, four resistors, and a bridge rectifier. Two to four additional components are optional for various levels of transient protection. No capacitors, EMI filters, or power factor correction circuits are needed. A string of series/parallel LEDs is tapped at four locations. Four linear current regulators sink current at each tap and are sequentially turned on and off, tracking the input sine wave voltage. Voltage across each regulator is minimized when conducting, providing high efficiency. Output current at each tap is individually resistor-adjustable. Cross-regulation, as the CL8801 switches from one regulator to the next, provides smooth transitions. The current waveform can be tailored to optimize for input voltage range, line/load regulation, output power/current, efficiency, power factor, THD, dimmer compatibility, and LED utilization. With the addition of an RC network, the driver is compatible with phase dimming.

Minimal component count (base config: CL8801 + 4 resistors + diode bridge)
No magnetics, no capacitors
Up to 7.5W output (13W w/ heat sink)
>110Lm/W using efficient LEDs
85% electrical efficiency
>0.95 power factor
<30% THD line current
Low conducted EMI w/o filters
85% LED luminous utilization
Phase dimmer compatible with an RC network
