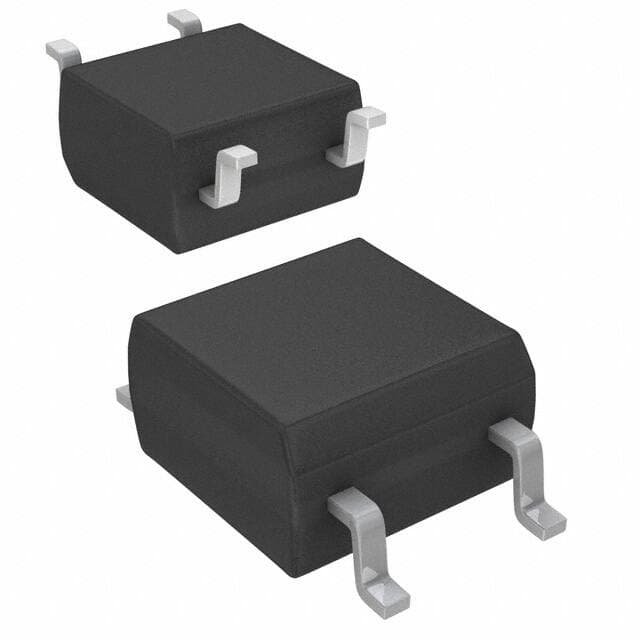

LITTELFUSE CPC1018NTR
Manufacturer No:
CPC1018NTR
Manufacturer:
Package:
ROHS COMPLIANT, MINIATURE, SOP-4
Description:
Transistor Output SSR, 1-Channel, 1500V Isolation, ROHS COMPLIANT, MINIATURE, SOP-4
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
CPC1018NTR information
LITTELFUSE CPC1018NTR technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE CPC1018NTR.
- Type
- Parameter
- Pbfree Code
- Yes
- RoHS Status
- RoHS Compliant
- Part Life Cycle Code
- Transferred
- Ihs Manufacturer
- IXYS INTEGRATED CIRCUITS DIVISION
- Package Description
- ROHS COMPLIANT, MINIATURE, SOP-4
- Reach Compliance Code
- compliant
- HTS Code
- 8541.40.95.00
- Additional Feature
- HIGH RELIABILITY, UL RECOGNIZED
- Configuration
- SINGLE
- Forward Current-Max
- 0.05 A
- Isolation Voltage-Max
- 1500 V
- Number of Elements
- 1
- On-State Current-Max
- 0.6 A
- On-state Resistance-Max
- 0.8 Ω
- Operating Temperature-Max
- 85 °C
- Operating Temperature-Min
- -40 °C
- Optoelectronic Device Type
- TRANSISTOR OUTPUT SSR
- Packing Method
- TR
- Terminal Finish
- Pure Matte Tin (Sn)
Download datasheets and manufacturer documentation for LITTELFUSE CPC1018NTR.
Features:
? SPST relay with a maximum current rating of 600mA and a voltage rating of 0-60V DC
? Low on-state resistance for high efficiency
? Low power consumption
? High switching speed
? High temperature operation
? High surge current capability
? RoHS compliant
Applications: The IXYS CPC1018NTR is suitable for a variety of applications, including motor control, lighting control, HVAC systems, industrial automation, and process control. It is also suitable for use in automotive, medical, and consumer electronics applications.
