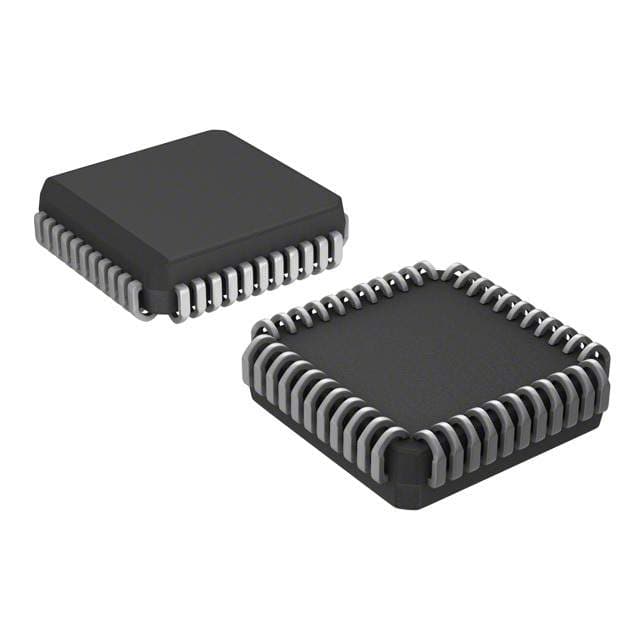

Renesas CS82C50A-596

Manufacturer No:

CS82C50A-596

Manufacturer:

Renesas

Package:

LCC

Description:

5V V 4.57mm mm 16.585mm mm 70°C °C Interface - UARTs (Universal Asynchronous Receiver Transmitter) 16.585mm mm CMOS 44 225 44

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS82C50A-596 information

Renesas CS82C50A-596 technical specifications, attributes, parameters and parts with similar specifications to Renesas CS82C50A-596.

Type
Parameter

Mount
Surface Mount

Package / Case
LCC

Packaging
Tape & Reel (TR)

Published
1996

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
44

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.31.00.01

Subcategory
Serial IO/Communication Controllers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Supply Voltage
5V

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
44

JESD-30 Code
S-PQCC-J44

Qualification Status
Not Qualified

Operating Temperature (Max)
70°C

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Supply Voltage-Min (Vsup)
4.5V

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Clock Frequency
10MHz

Data Rate
625 kbps

Address Bus Width
3

Boundary Scan
NO

Low Power Mode
YES

External Data Bus Width
8

Number of Serial I/Os
1

Bus Compatibility
80C86; 80C88

Data Transfer Rate-Max
0.0762939453125 MBps

Communication Protocol
ASYNC, BIT

Length
16.585mm

Height Seated (Max)
4.57mm

Width
16.585mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas CS82C50A-596.

Datasheets:

intersil-cs82c50a596-datasheets-3353.pdf

CS82C50A-596 Overview

This product is available in a cost-effective package called LCC.Tape & Reel (TR) is used in terms of packaging.The type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL is used for the uPs, uCs, and peripheral ICs on the board.The configuration of this device includes 44 terminations.For its operation, a voltage of 5V is provided as the supply voltage.There are 1 serial I/Os available for communication of data.The electronic device is a type of integrated circuit with a pin count of 44.There is a 10MHz clock frequency for this IC.UART is included under the subcategory of Serial IO/Communication Controllers as a result of a series of similarUARTies between UART and other similar entUARTies.Surface Mount is the method used to mount it.The device is capable of operating at a maximum temperature of 70°C.If the power supply is set to 5V, it is reliable and efficient for electronic designers.By maintaining a voltage lower than 5.5V, normal operation can be assured.In order to keep the system functioning normally, the supply voltage must be maintained above 4.5V.

CS82C50A-596 Features

1 serial I/Os
Clock frequency of 10MHz
Power supplies of 5V

CS82C50A-596 Applications

There are a lot of Intersil (Renesas Electronics America)
CS82C50A-596 UARTs applications.

Personal Digital Assistants
Cellular Phones DataPort
Wireless Infrared Data Communications Systems
Handheld Terminals and Tablets
Handheld Computers
Wireless Portable Point-of-Sale Terminals
GPS Devices
Personal Digital Assistants Modules
Battery Operated Instruments
Multimedia Systems
