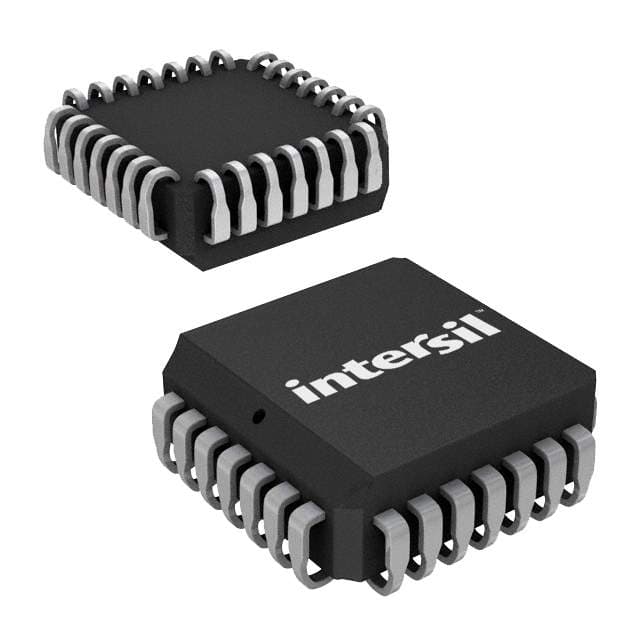

Renesas CS82C5296
Renesas CS82C5296

Renesas CS82C5296

Manufacturer No:

CS82C5296

Manufacturer:

Renesas

Package:

LCC

Description:

5V V 4.57mm mm 11.505mm mm 70°C °C Interface - UARTs (Universal Asynchronous Receiver Transmitter) 11.505mm mm CMOS 28 225

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS82C5296 information

Renesas CS82C5296 technical specifications, attributes, parameters and parts with similar specifications to Renesas CS82C5296.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • LCC
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 1996
  • JESD-609 Code
  • e0
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 28
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • HTS Code
  • 8542.31.00.01
  • Subcategory
  • Serial IO/Communication Controllers
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • J BEND
  • Peak Reflow Temperature (Cel)
  • 225
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 1.27mm
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • S-PQCC-J28
  • Qualification Status
  • Not Qualified
  • Operating Temperature (Max)
  • 70°C
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Power Supplies
  • 5V
  • Supply Voltage-Min (Vsup)
  • 4.5V
  • uPs/uCs/Peripheral ICs Type
  • SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
  • Clock Frequency
  • 16MHz
  • Data Rate
  • 1 Mbps
  • Address Bus Width
  • 2
  • Boundary Scan
  • NO
  • Low Power Mode
  • YES
  • External Data Bus Width
  • 8
  • Number of Serial I/Os
  • 1
  • Bus Compatibility
  • 80C86; 80C88
  • Data Transfer Rate-Max
  • 0.125 MBps
  • Communication Protocol
  • ASYNC, BIT
  • Length
  • 11.505mm
  • Height Seated (Max)
  • 4.57mm
  • Width
  • 11.505mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for Renesas CS82C5296.

Datasheets:

CS82C5296 Overview


There is a cost-effective LCC package available for this product.For packaging purposes, Tape & Reel (TR) is used.The type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL is used to identify the uPs/uCs/Peripheral ICs on the board.Configuration of this device involves 28 terminations.For its operation, it requires a supply voltage of 5V.At present, this electronic part has a status of Discontinued.Data is communicated via 1 serial I/Os.There is 16MHz clock frequency measured on this IC.In light of numerous similarities, it is included in the subcategory of Serial IO/Communication Controllers.The mount is done using Surface Mount.70°C is the maximum temperature that it can operate at.When power supplies are provided of 5V, it is reliable and efficient for electronic designers.In order to maintain normal operation, it is necessary to keep the supply voltage below 5.5V.A supply voltage greater than 4.5V ensures normal operation.

CS82C5296 Features


1 serial I/Os
Clock frequency of 16MHz
Power supplies of 5V


CS82C5296 Applications


There are a lot of Intersil (Renesas Electronics America)
CS82C5296 UARTs applications.


  • Battery Operated Electronics
  • Handheld Terminal
  • Personal Digital Assistants
  • Cellular Phones DataPort
  • Wireless Infrared Data Communications Systems
  • Handheld Terminals and Tablets
  • Handheld Computers
  • Wireless Portable Point-of-Sale Terminals
  • GPS Devices
  • Personal Digital Assistants Modules
