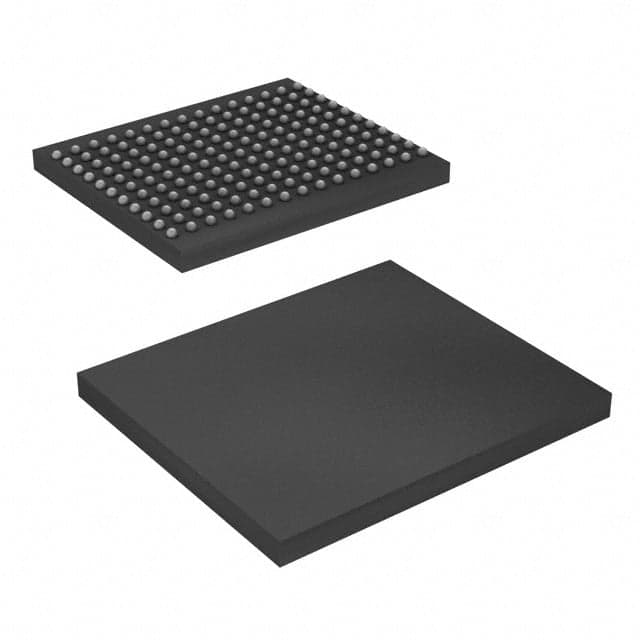

INFINEON CY7C1514KV18-333BZXI

Manufacturer No:

CY7C1514KV18-333BZXI

Manufacturer:

INFINEON

Package:

165-LBGA

Description:

Surface Mount 165 Pin Memory IC CY7C1514 72 Mb kb 15mm mm 990mA mA 36b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CY7C1514KV18-333BZXI information

INFINEON CY7C1514KV18-333BZXI technical specifications, attributes, parameters and parts with similar specifications to INFINEON CY7C1514KV18-333BZXI.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
165-LBGA

Number of Pins
165

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Published
2003

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
165

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Additional Feature
PIPELINED ARCHITECTURE; IT ALSO OPERATES AT 1.5V

Technology
SRAM - Synchronous, QDR II

Voltage - Supply
1.7V~1.9V

Terminal Position
BOTTOM

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
CY7C1514

Operating Supply Voltage
1.8V

Supply Voltage-Max (Vsup)
1.9V

Supply Voltage-Min (Vsup)
1.7V

Memory Size
72Mb 2M x 36

Number of Ports
2

Nominal Supply Current
990mA

Memory Type
Volatile

Clock Frequency
333MHz

Access Time
450 ps

Memory Format
SRAM

Memory Interface
Parallel

Output Characteristics
3-STATE

Memory Width
36

Address Bus Width
40b

Density
72 Mb

I/O Type
SEPARATE

Sync/Async
Synchronous

Word Size
36b

Standby Voltage-Min
1.7V

Length
15mm

Height Seated (Max)
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON CY7C1514KV18-333BZXI.

CY7C1514KV18-333BZXI Overview

Volatile is the type of memory it has. There is a Tray case available. The 165-LBGA case contains it. The chip has an 72Mb 2M x 36 memory. This device uses a SRAM-format memory, which is of mainstream design. A wide operating temperature range makes this device ideal for a variety of demanding applications. A voltage of 1.7V~1.9V can be supplied to memory ics. Its recommended mounting type is Surface Mount. The chip has 165 terminations. For a comprehensive working procedure, this part supports as many as 1 functions. In order to operate this memory device, it must be supplied with 1.8V of power. It is important to note that the memory has a clock frequency rotation within the range of 333MHz. Similar parts are frequently selected using CY7C1514, the device's base part number. The memory device is enclosed in a package with an 165-pin connector. There are 165 pins on this memory device, which indicates it has 165 memory locations in it. A voltage of 1.8V is noted as the operating supply voltage for this memory. In this chip, Surface Mount mounting is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component is rated at 990mA. Despite all its merits, this chip also features PIPELINED ARCHITECTURE; IT ALSO OPERATES AT 1.5V to boost system performance. A memory address is accessed through 2 ports on this chip. I/O port addresses on this device are mapped to memory addresses of SEPARATE bits.

CY7C1514KV18-333BZXI Features

Package / Case: 165-LBGA
165 Pins
Operating Supply Voltage:1.8V
Additional Feature:PIPELINED ARCHITECTURE; IT ALSO OPERATES AT 1.5V
I/O Type: SEPARATE

CY7C1514KV18-333BZXI Applications

There are a lot of Cypress Semiconductor Corp
CY7C1514KV18-333BZXI Memory applications.

cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
